Modular Filter Assembly

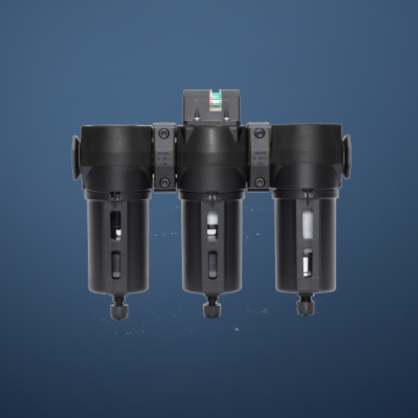

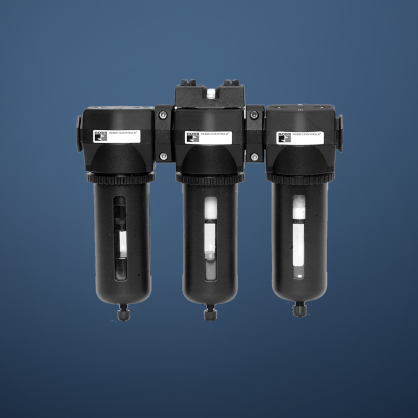

The MD3™ and MD4™ filters can be purchased as an assembly in the Clean Air Package. This allows for a standard 5μm filter, a coalescing filter (0.01 - 0.3μm) and an adsorbing filter to operate in your air line. Remove oil and hydrocarbon vapour from your airline and other contamination. Internal automatic drains for general purpose and coalescing filters; manual drain for the adsorbing filter. A Ross L-O-X® lockout valve can also be included to allow for safe isolation.
0 - 10 bar | 125 scfm (58 l/s)
Adsorbing | Coalescing | Polycarbonate Bowl
0 - 14 bar | 125 scfm (58 l/s)
Adsorbing | Coalescing | Extended Metal Bowl
0 - 14 bar | 125 scfm (58 l/s)
Adsorbing | Coalescing | Metal Bowl
0 - 14 bar | 158 scfm (75 l/s)
Adsorbing | Coalescing | Extended Metal Bowl
0 - 10 bar | 80 scfm (37 l/s)
Adsorbing | Coalescing | Polycarbonate Bowl
0 - 14 bar | 80 scfm (37 l/s)
Adsorbing | Coalescing | Metal Bowl
Recently viewed
Still not sure? Reach out for expert help on products
If you have any queries, need a quote for one of our products or want some technical advice from one of our engineers, please get in touch and a member of MacScott Bond will assist.
A History in Pneumatics
MacScott Bond has been supplying air motors in the UK since the early days of our company in the 1970s. Through our experience with air motors, we have seen that the best way of improving your pneumatic components’ life and reducing maintenance costs overall is to prepare the air flowing through them. MacScott Bond holds a stock of Ross Controls’ Filter, Regulator, Lubricators, which have been sized to match requirements for the Globe air motors in our range. If you have an air motor application, remember to ask MacScott Bond about the rest of the pneumatic circuit and we will be able to supply an appropriate FRL assembly.
