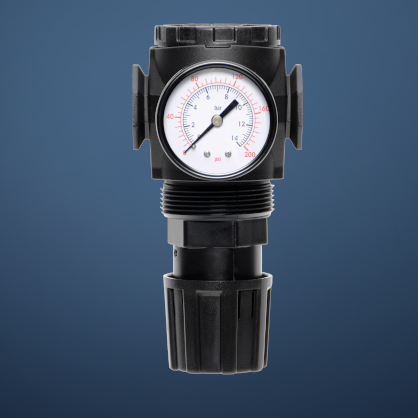

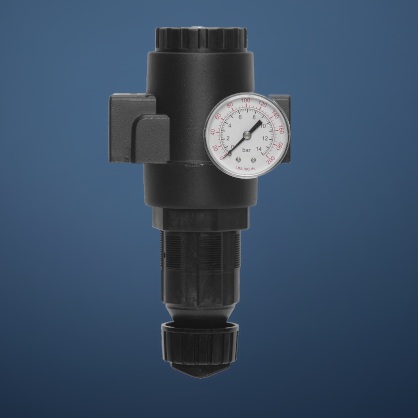

Ross Pneumatic Regulators
Choose between two design options to control the pressure in your pneumatic circuit: opt for the piston design for maximum airflow or select the diaphragm design for high sensitivity and rapid response. These regulators offer flexibility with modular or in-line mounting options, accommodating the inclusion of a pressure gauge. Featuring a removable adjusting knob for tamper resistance, they come with choices between self-relieving or non-relieving functionality. Certain models also offer a reverse flow option, with additional T-handle options available for specific regulator models.
7 bar (Outlet) | 23 scfm (10 l/s)
Standard | Self-Relieving | Piston
7 bar (Outlet) | 23 scfm (10 l/s)
Standard | Self-Relieving | Diaphragm
12 bar (Outlet) | 155 scfm (73 l/s)
Standard | Self-Relieving | Reverse Flow
12 bar (Outlet) | 155 scfm (73 l/s)
Standard | Self-Relieving
7 bar (Outlet) | 800 scfm (377 l/s)
Standard | Self-Relieving | Reverse Flow
7 bar (Outlet) | 800 scfm (377 l/s)
Standard | Self-Relieving
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Locking Knob | Standard Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Locking Knob | Standard Flow | BSP
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Locking Knob | Reverse Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Locking Knob | Reverse Flow | BSP
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | T-Handle | Standard Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | T-Handle | Standard Flow | BSP
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | T-Handle | Reverse Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | T-Handle | Reverse Flow | BSP
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Adjusting Knob | Standard Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Adjusting Knob | Standard Flow | BSP
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Adjusting Knob | Reverse Flow | NPTF
14 bar (Outlet) | 120 scfm (56 l/s)
Standard | Self-Relieving | Adjusting Knob | Reverse Flow | BSP
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting T-Handle | Standard Flow | NPTF
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting T-Handle | Reverse Flow | NPTF
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting T-Handle | Reverse Flow | BSP
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting T-Handle | Standard Flow | BSP
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting Knob | Standard Flow | NPTF
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting Knob | Standard Flow | BSP
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting Knob | Reverse Flow | NPTF
12 bar (Outlet) | 220 scfm (103 l/s)
Standard | Self-Relieving | Adjusting Knob | Reverse Flow | BSP
10 bar (Outlet) | 100 scfm (47 l/s)
Standard | Self-Relieving | Reverse Flow
10 bar (Outlet) | 100 scfm (47 l/s)
Standard | Self-Relieving
7 bar (Outlet) | 25 scfm (11 l/s)
Standard | Self-Relieving
Recently viewed
Still not sure? Reach out for expert help on products
If you have any queries, need a quote for one of our products or want some technical advice from one of our engineers, please get in touch and a member of MacScott Bond will assist.
A History in Pneumatics
MacScott Bond has been supplying air motors in the UK since the early days of our company in the 1970s. Through our experience with air motors, we have seen that the best way of improving your pneumatic components’ life and reducing maintenance costs overall is to prepare the air flowing through them. MacScott Bond holds a stock of Ross Controls’ Filter, Regulator, Lubricators, which have been sized to match requirements for the Globe air motors in our range. If you have an air motor application, remember to ask MacScott Bond about the rest of the pneumatic circuit and we will be able to supply an appropriate FRL assembly.
