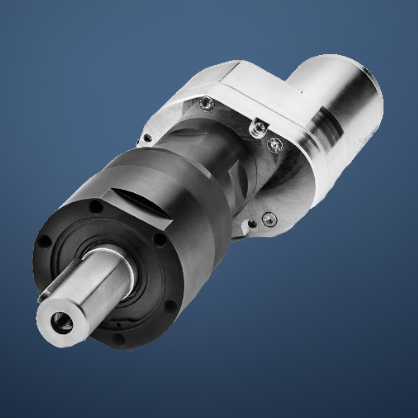

Technical Details for the TZB25 Series
| Part Numbers | TZB25 Series |
| Peak Power | 530rpm |
| Nominal Speed | 70 to 470rpm |
| Nominal Torque | 60 to 380 Nm |
| Min. Starting Torque | 100 to 680 Nm |
| Air Consumption | 40 litres/sec free air |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 60oC |
| Airline Filtration | <30 μm |
| Lubrication Oil |
Gear Oil (First gear stage) - Atlas Copco Turbine Gearbox oil 32 Mereta 32 Lubrication Planetary Gears - Mobile Polyrex 222 |
| Lubrication | Before longer stand stills always protect your tool by adding a few drops of oil into the air inlet. Run the tool for 5–10 seconds and absorb any access oil at the air outlet in a cloth. |
| Shaft | Keyed Shaft |
| Air Connection | Atlas Copco's 4175073800 & 16mm dia hose |
| ATEX | Ex II 2GD h T4 IIC T135°C X |
| Manufacturer | Atlas Copco Industrial Technique AB |
