Technical Details for the M53 Series

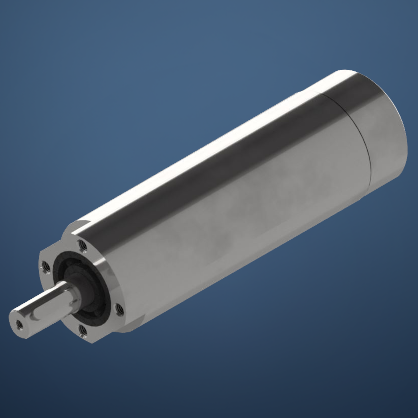

The M53 series motors from Globe come with a case and end plate made of AISI 303 stainless steel. Upon request, the output shaft can also be provided in the same material. This series offers both reversible and non-reversible motors. Non-reversible motors are supplied with Counter Clockwise rotation (facing the shaft)as standard but can be ordered in Clockwise rotation if requested.
For applications requiring the connection of the motor to other equipment or an interfacing flange, these motors can be assembled with a protruding bearing to facilitate this.
To order a motor that prevents the output shaft from rotating when stopped, please add "102" after the order code. If you are unsure about which motor to choose please ask and we will assist you in your selection.
| Part Numbers | M53 Series |
| Peak Power | 23 to 15000rpm |
| Nominal Speed | 11 to 7500rpm |
| Nominal Torque | 0.5 to 60 Nm (motor cannot be subjected to torques over 60Nm) |
| Min. Starting Torque | 0.6 to 60 Nm (motor cannot be subjected to torques over 60Nm) |
| Air Consumption | 8.6 litres/sec free air (7 bar) 7.4 litres/sec free air (6 bar) 6.2 litres/sec free air (5 bar) 5.1 litres/sec free air (4 bar) |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 80oC |
| Airline Filtration | < 64 μm |
| Lubrication Oil | 32mm2/s viscosity |
| Lubrication | Continuous: 2 to 3 drops per minute Intermittent: 4 to 6 drops per minute |
| Shaft | Keyed Shaft 4 x 4 x 18 |
| Air Connection | G 1/4" |
| ATEX | II cat. 2 G&D T3 |
| Manufacturer | Globe Airmotors B.V. |
