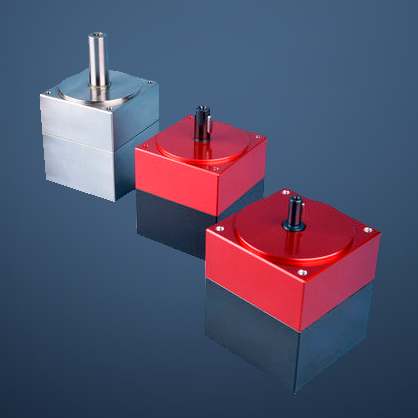

Technical Details for the RM004 Series
Globe's RM004 is the smallest in its series, shares the characteristic features of the other compact piston air motors, featuring both low speed and high torque without the need for a gearbox. These motors exhibit exceptional efficiency, delivering high performance and boasting up to 90% more efficiency than other air motors. In contrast to the other compact piston models, the GLOBE RM004 showcases a hard-anodized aluminum housing with plastic wheels on its seven pistons. With a double bearing on the output shaft, it is ideal for direct drive applications, ensuring a lightweight design without compromising power and efficiency.
The motors offer several advantages, including simple and inexpensive variable speed and torque control, indefinite stalling under load, and instant reversibility with a control valve. Additionally, they are resistant to harsh conditions, cool-running due to expanding air, compact and lightweight compared to electric motors, and operate without shock start-up.
Applications for Globe's compact piston air motors include mixing equipment, winding equipment, conveyor belts, hose reels, turntables, packing machines, and cap screwing machines. The oil-free and silicone-free motors are suitable for mixing applications, and special versions are available for the food and chemical industry. For help selecting the right motor, please contact us.
| Part Numbers | RM004 |
| Peak Power | 800rpm - Clockwise & Counter-Clockwise 550rpm - Reversible |
| Speed Range | 100 to 800rpm - Clockwise & Counter-Clockwise 60 to 550rpm - Reversible |
| Torque at max. power | 1.7 Nm (15 inch lbs.) |
| Starting Torque | 3.4 Nm (30 inch lbs) |
| Air Consumption | 2.8 litres/sec free air |
| Max. Working Pressure | 8 bar |
| Operating Temperatures | -10oC to 60oC |
| Airline Filtration | 5 μm |
| Lubrication Oil | Able to run without lubrication. Complete oil-less operation is possible in certain applications. |
| Lubrication | Oil Free Running |
| Shaft | Keyed Shaft |
| Air Connection | G 1/8" |
| ATEX | II 2G Ex h IIC T5 Gb II 2D Ex h IIIC T100°C Db Ta = -10° + 60°C |
| Manufacturer | Globe Airmotors B.V. |
