Technical Details for the 5M Series

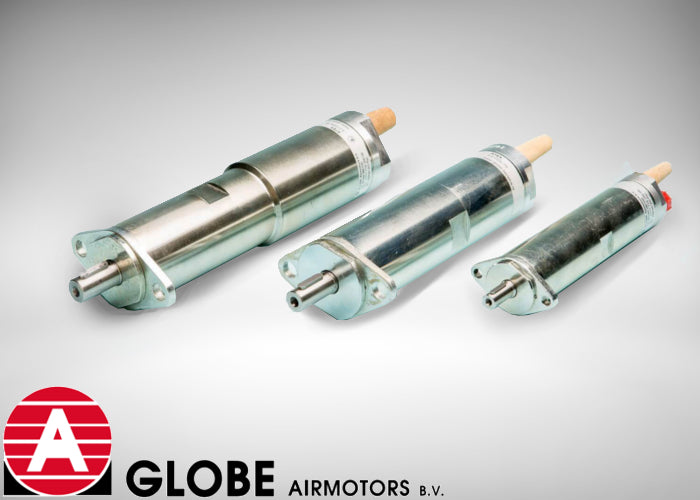

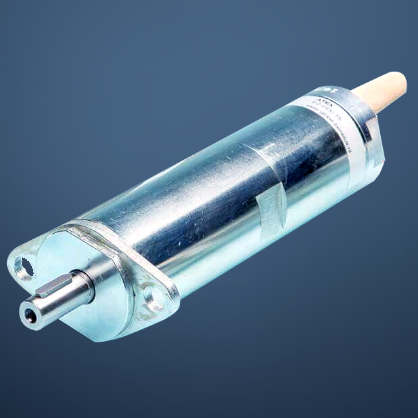

Globe's Archimedes compact vane air motors, featuring integrated gearboxes, are well-suited for a diverse range of applications, commonly used in handheld devices like pipe cleaners.
Designed and manufactured by Globe Airmotors B.V., this motor range is resilient in warm, dirty, and damp conditions and can be manufactured in stainless steel to extend its usability to the food industry. These pneumatic drives provide an excellent solution for your applications, combining quality and affordability.

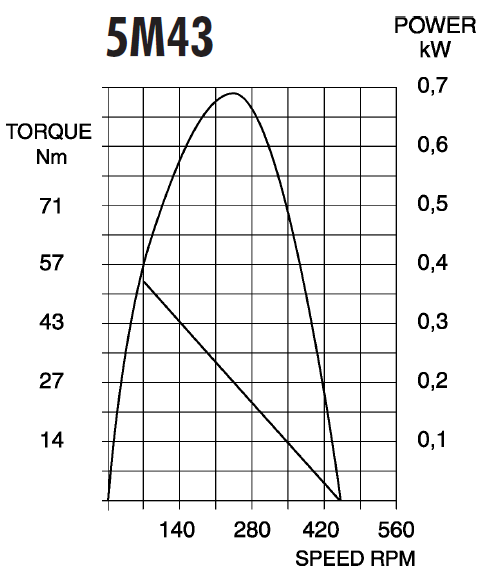

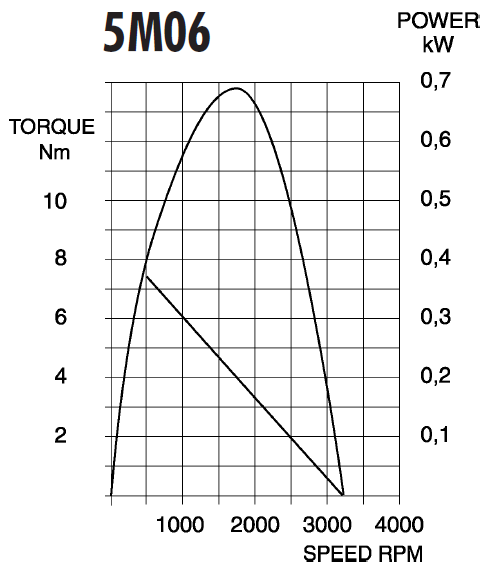

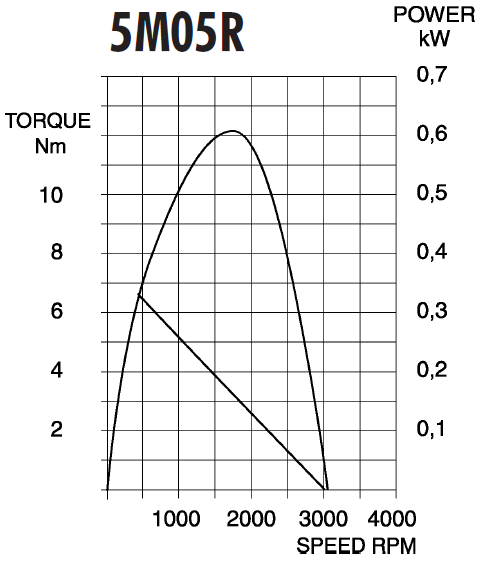

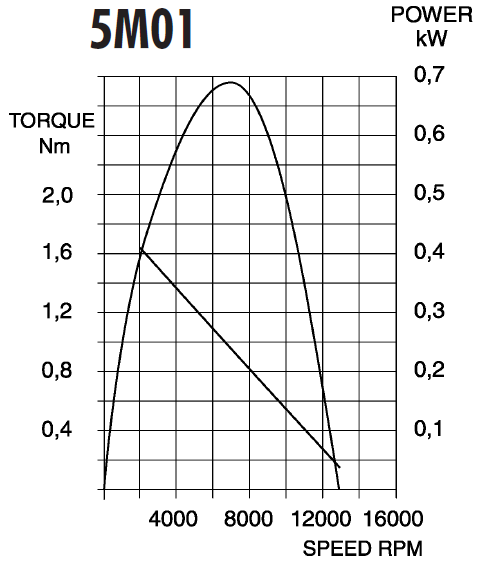

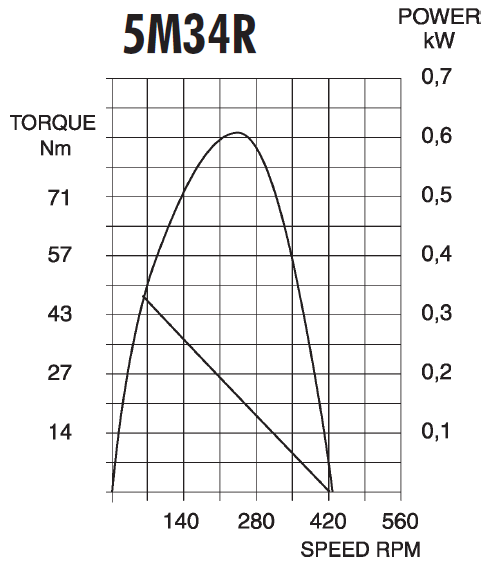

Determine whether you need the motor to go in reverse, then select your motor using your required speed and torque. Choosing the appropriate motor is simplified by referring to the air motor graphs. If you are still unsure, please feel free to contact us for assistance.

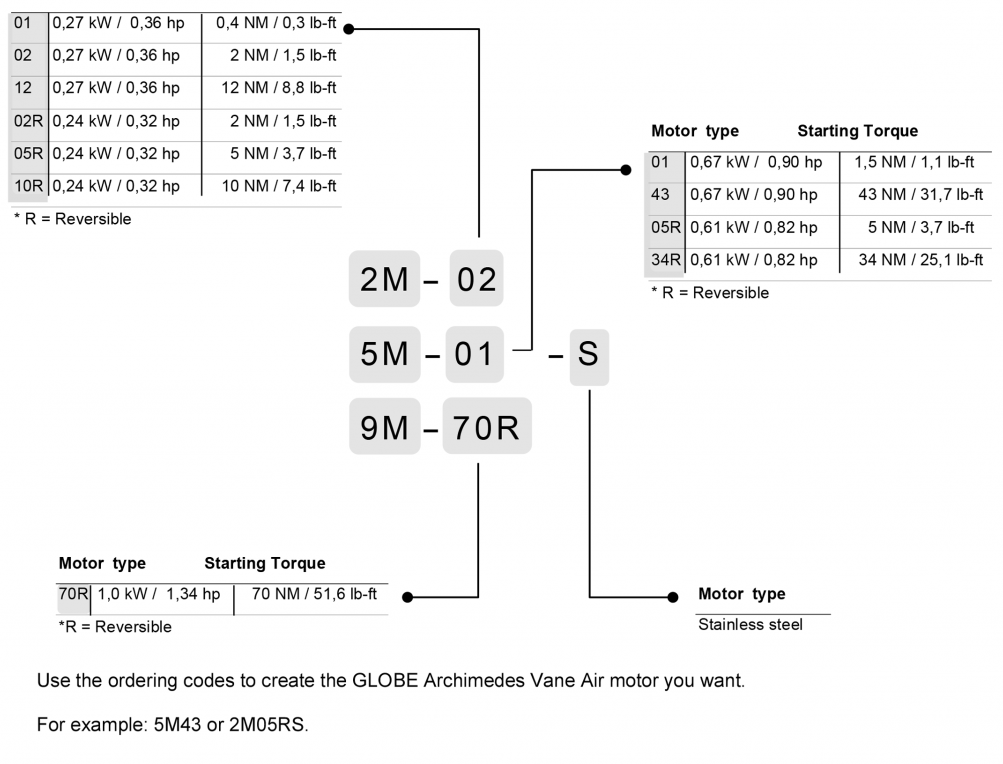

| Part Numbers | Counter Clockwise - 5M01, 5M43 Reversible - 5M05R, 5M34R |
| Peak Power | 420 to 14000rpm |
| Nominal Speed | 250 to 7000rpm |
| Nominal Torque | 0.9 to 27 Nm (0.66 to 19.89 lb-ft) |
| Min. Starting Torque | 1.5 to 43 Nm (1.1 to 31.7 lb-ft) |
| Air Consumption | 13.8 litres/sec free air |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 80oC |
| Airline Filtration | 5 μm |
| Lubrication Oil | 32mm2/s viscosity |
| Lubrication | Continuous: 3 to 4 drops per minute Intermittent: 6 to 8 drops per minute |

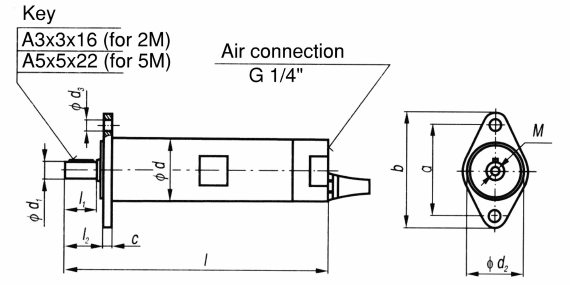

| Shaft | Key - A5 x 5 x 22 |
| Air Connection | G 1/4" |
| ATEX | Not Available |
| Manufacturer | Globe Airmotors B.V. |
