Technical Details for the LZL15

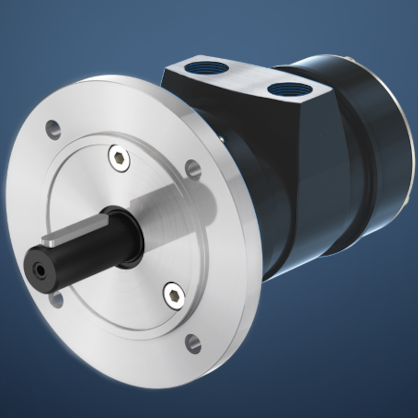

Atlas Copco's LZL vane motors feature a six-vane design, delivering a compact pneumatic drive with a long service life. The motors offer various mounting arrangements (e.g. IEC, NEMA) to integrate into various applications.
These lubrication-free air motors emit fewer lubricants into the air, making them suitable for sensitive processes and hygienic environments. However, for optimal performance and extended product life, the motors benefit from a small quantity of oil from a lubricator.
Choose between the Power motors (P) or the low to medium speed variants(M). If you are unsure, please feel free to contact us for assistance.
| Part Numbers | LZL15 |
| Peak Power | 7000rpm |
| Nominal Speed | 3380rpm |
| Nominal Torque | 6.5 Nm |
| Min. Starting Torque | 10.9 Nm (8 lb-ft) |
| Air Consumption | 61 litres/sec free air |
| Max. Working Pressure | 6.3 bar |
| Operating Temperatures | -20oC (-4oF) to +60oC (+140oF) (Note: +40oC (104oF)Max surrounding temp for valid Ex Certification) |
| Airline Filtration | < 30 μm |
| Lubrication Oil | Recommended : Q8 Chopin 46 Shell Air Tool Oil S2 A 320 |
| Lubrication | Adjust for the tool used. Too much oil can decrease tool performance. |
| Shaft | Keyed Shaft |
| Air Connection | 3/4" BSP |
| ATEX | Ex II 2 G Ex h IIC T2 Gb |
| Manufacturer | Atlas Copco Industrial Technique AB |
