Technical Details for the RM024 Series

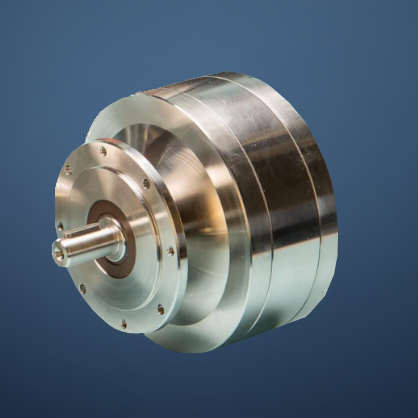

Globe's RM024 compact piston air motor is the largest and most powerful in its series, boasting distinctive features. Notably, these motors exhibit low air consumption, achieving up to 90% greater efficiency than their counterparts. They deliver high torque at low speed without relying on a gearbox, and further contribute to their appeal with a low noise level.
The motors offer several advantages, including simple and inexpensive variable speed and torque control, indefinite stalling under load, and instant reversibility with a control valve. Additionally, they are resistant to harsh conditions, cool-running due to expanding air, compact and lightweight compared to electric motors, and operate without shock start-up.
Applications for Globe's compact piston air motors include mixing equipment, winding equipment, conveyor belts, hose reels, turntables, packing machines, and cap screwing machines. The oil-free and silicone-free motors are suitable for mixing applications, and special versions are available for the food and chemical industry. For help selecting the right motor, please contact us.
| Part Numbers | RM024 |
| Peak Power | 450rpm |
| Speed Range | 50 to 450rpm - CW & CCW 50 to 350 - Reversible |
| Torque at max. power | 15 Nm (11 lb-ft) |
| Starting Torque | 32 Nm (23.6 lb-ft) |
| Air Consumption | 7.5 litres/sec free air |
| Max. Working Pressure | 8 bar |
| Operating Temperatures | -10oC to 60oC |
| Airline Filtration | 5 μm |
| Lubrication Oil | Able to run without lubrication. Complete oil-less operation is possible in certain applications. |
| Lubrication | Oil Free Running |
| Shaft | Keyed Shaft |
| Air Connection | G 1/4" |
| ATEX | Some Models Certified to ATEX II cat.2 G&D T5 (please confirm when ordering) |
| Manufacturer | Globe Airmotors B.V. |
