Filter Regulator Lubricator
Bantam | Miniature | Mid-Size | MD3™ | Full-Size | MD4™ | High-Capacity

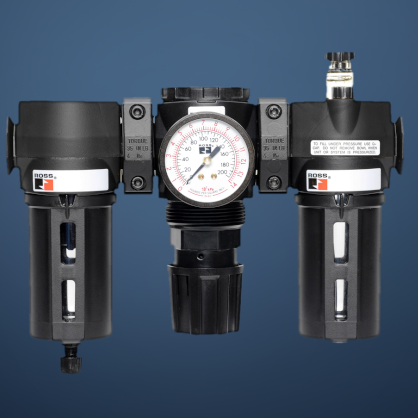

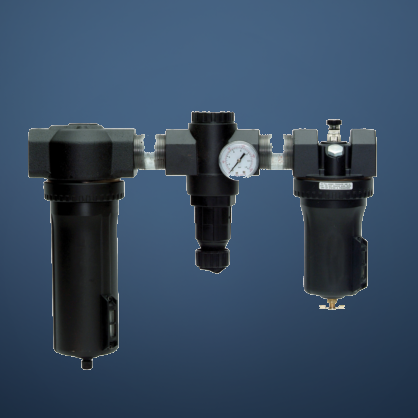

Pneumatic Filter, Regulator, and Lubricator Assemblies
Pneumatic Filter, Regulator, and Lubricators are modular assemblies cleaning your air, regulating air pressure, and facilitating oil misting to enhance the longevity and performance of pneumatic components connected to your air line.


Maximum 14 bar | 22 scfm (10 l/s)
Metal Bowls | Diaphragm Regulator | Wick-Feed


Maximum 10 bar | 22 scfm (10 l/s)
Polycarbonate Bowls | Diaphragm Regulator | Wick-Feed


Maximum 10 bar | 22 scfm (10 l/s)
Polycarbonate Bowls | Piston Regulator | Wick-Feed


Maximum 14 bar | 22 scfm (10 l/s)
Metal Bowls | Piston Regulator | Wick-Feed


Maximum 10 bar | 138 scfm (65 l/s)
Polycarbonate Bowls | Piston Regulator | Automatic Drain | Female Ports


Maximum 14 bar | 138 scfm (65 l/s)
Metal Bowls | Piston Regulator | Automatic Drain | Female Ports


Maximum 10 bar | 138 scfm (65 l/s)
Polycarbonate Bowls | Piston Regulator | Automatic Drain | Male Ports


Maximum 14 bar | 138 scfm (65 l/s)
Metal Bowls | Piston Regulator | Automatic Drain | Male Ports


Maximum 10 bar | 138 scfm (65 l/s)
Polycarbonate Bowls | Piston Regulator | Manual Drain | Female Ports


Maximum 14 bar | 138 scfm (65 l/s)
Metal Bowls | Piston Regulator | Manual Drain | Female Ports


Maximum 10 bar | 138 scfm (65 l/s)
Polycarbonate Bowls | Piston Regulator | Manual Drain | Male Ports


Maximum 14 bar | 138 scfm (65 l/s)
Metal Bowls | Piston Regulator | Manual Drain | Male Ports


Maximum 14 bar | 495 scfm (233 l/s)
Metal Bowls | 1000ml Lubricator | Sight-Feed | Fill Port


Maximum 14 bar | 495 scfm (233 l/s)
Metal Bowls | 1000ml Lubricator | Sight-Feed | Quick-Fill Cap


Maximum 10 bar | 270 scfm (127 l/s)
Polycarbonate Bowls | 480ml Lubricator | Piston Regulator | Wick-Feed


Maximum 14 bar | 270 scfm (127 l/s)
Metal Bowls | 480ml Lubricator | Piston Regulator | Wick-Feed


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Quick Fill Cap


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Fill Port


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Quick Fill Cap


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Fill Port


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Quick Fill Cap


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Quick Fill Cap


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Reverse Flow | Quick Fill Cap


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Reverse Flow | Quick Fill Cap


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Quick Fill Cap


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Fill Port


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Fill Port


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Quick Fill Cap


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Fill Port


Maximum 14 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Float Drain | Quick Fill Cap


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Fill Port


Maximum 10 bar | 110 scfm (51 l/s)
Polycarbonate Bowls | 151ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Quick Fill Cap


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 177ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Quick Fill Cap


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Fill Port


Maximum 17 bar | 110 scfm (51 l/s)
Metal Bowls | 295ml Lubricator | Diaphragm Regulator | Sight-Feed | Manual Drain | Quick Fill Cap


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Manual Drain | Fill Port


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Manual Drain | Fill Port | Reverse Flow


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Manual Drain | Quick Fill Cap | Reverse Flow


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Manual Drain | Quick Fill Cap


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Automatic Drain | Fill Port


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Automatic Drain | Fill Port | Reverse Flow


Maximum 10 bar | 205 scfm (96 l/s)
Polycarbonate Bowls | 270ml Lubricator | Piston Regulator | Sight-Feed | Automatic Drain | Quick Fill Cap | Reverse Flow
Recently viewed
Still not sure? Reach out for expert help on products
If you have any queries, need a quote for one of our products or want some technical advice from one of our engineers, please get in touch and a member of MacScott Bond will assist.

A History in Pneumatics

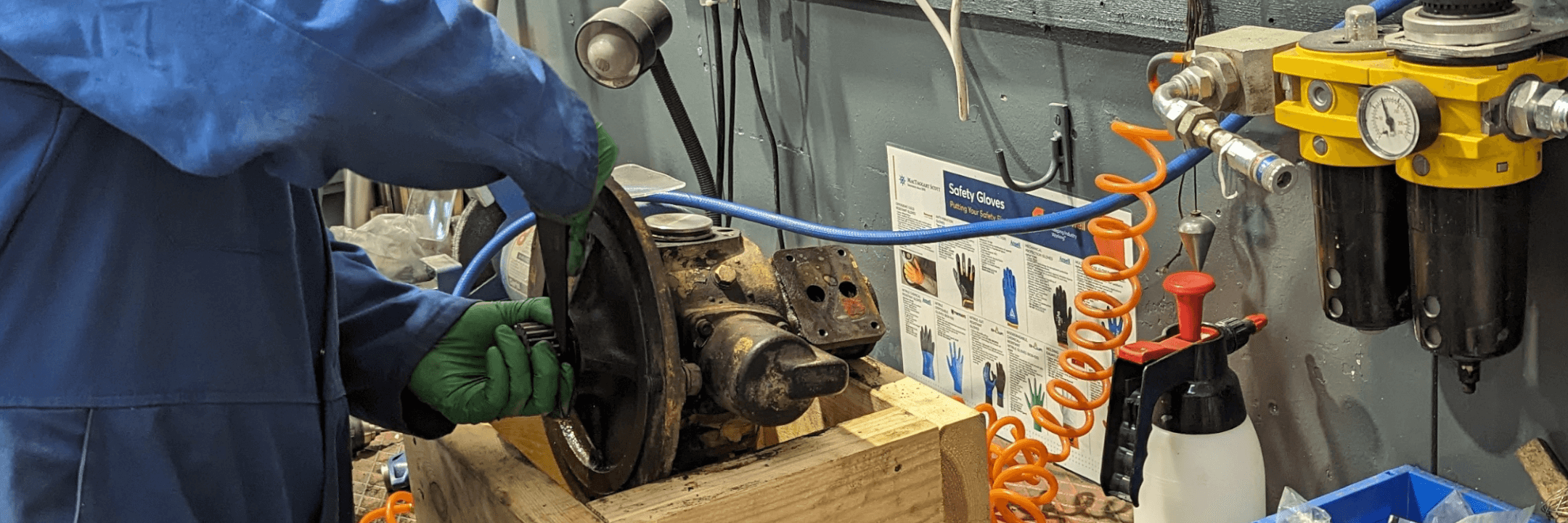

MacScott Bond has been supplying air motors in the UK since the early days of our company in the 1970s. Through our experience with air motors, we have seen that the best way of improving your pneumatic components’ life and reducing maintenance costs overall is to prepare the air flowing through them. MacScott Bond holds a stock of Ross Controls’ Filter, Regulator, Lubricators, which have been sized to match requirements for the Globe air motors in our range. If you have an air motor application, remember to ask MacScott Bond about the rest of the pneumatic circuit and we will be able to supply an appropriate FRL assembly.
