Technical Details for the ACMU

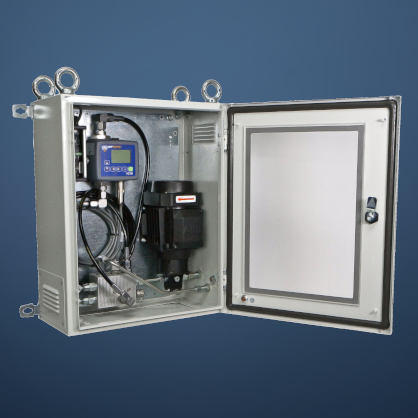

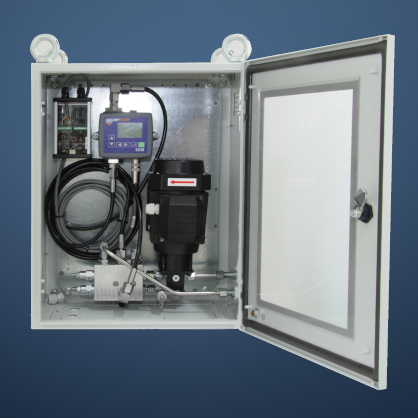

The ACMU, or Auxiliary Contamination Monitoring Unit, incorporates MP Filtri’s ICM technology and caters for applications with aerated, high-viscosity, and/or un-pressurised hydraulic/lubrication systems. This specialised unit can be used in various industries and environments, providing reliable and accurate performance for fluid condition monitoring.
Its ease of retro-fitting, exceptional communication capabilities, and substantial test memory make it a reliable choice for industries such as wind energy, tidal/wave energy, gearbox applications, offshore and ship systems, lubrication and oil systems, mobile equipment, and test benches.
Scope of Supply:
1 x ACMU* (1/4” BSP inlet/outlet ports as standard)
1 x 3m Twisted Pair Cable Assembly (Plate version)
1 x 5m length twisted pair cable (Cabinet version)
2 x 1/4” BSP to 7/16 JIC coupling
1 x Hard copy Quick start/wiring installation guide
1 x Hard copy Fluid Condition Handbook
1 x Digital copy of user guides/software/drivers
1 x Hard copy of calibration certificate
(*) Specific model will be as per ordered item
| Technology | ICM with keypad and backlit display and relays |
| Analysis range | ISO 4406 Codes 8 to 24 NAS 1638 Class 2 to 12 AS4059/ISO 11218 Rev E, Table 1 Size Codes 2-12 AS4059/ISO 11218 Rev E, Table 2 Size Codes, A: 000 TO 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 AS4059 Rev F, Table 1 Size Codes 2-12 AS4059 Rev F, Table 2 Size Codes cpc [000 to 12, 00 to 12, 00 to 12, 2 to 12, 4 to 12, 7 to 12] GBT14039 Codes 8-24 GJB420B Size Codes, A: 000 to 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 Please Note: Lower Limits are Test Volume dependent |
| Fluid Compatibility | Hydrocarbon based & Synthetic hydraulic fluids |
| Circuit Flow Rate | 40 - 400 ml/minute |
| Viscosity Range | Max. 1000 cSt |
| Operating Temperatures | Fluid (start-up/continuous): Min: Viscosity dependent. Not greater than 1000cSt Max: 80oC Ambient: -40oC to 50oC |
| Inlet Pressure | Minimum: Positive Pressure Maximum: 50 bar (725 psi) gauge pressure (pump option dependent) |
| Outlet Pressure |
Minimum: Atmosphere (1013 bar at sea level) Maximum: 3.0 bar (43.5 psi) gauge pressure |
| Moisture Sensing | Available with or without moisture sensor |
| Power Consumption | 0.25 kW max. |
| Dimensions |
Weight: 21kg Dimensions: 562mm (H) x 226mm (D) x 482mm (W) |
| Manufacturer | MP Filtri |
