Technical Details for the BS110

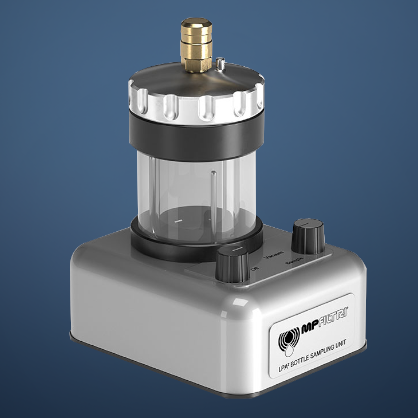

The BS110 is a Bottle Sampler, offering a practical solution for off-line and laboratory applications where fluid sampling at the point of use is either inaccessible or impractical. Designed with a capacity of 110 ml, these bottle samplers come equipped with a standard fluid de-aeration facility, making them versatile for various sampling needs.
Scope of Supply:
1 x 110ml Bottle Sampling unit
1 x Pressure Cap
1 x Vacuum Cap
1 x M16x2 microbore pressure hose, 600mm long
1 x 1L waste receptacle
1 x 12V, 2A power adapter c/w UK head
1 x pack of disposable dip tubes
1 x hand pump
1 x length of hose for hand pump
3 x 100ml clear plastic bottles
1 x Hard copy of product user guide
1 x Digital copy of user guides/software/drivers
2 x Thermal printer paper
1 x Carry case
| Max. Chamber Pressure | 2.5 bar (36.3 psi) only |
| Min. Chamber Pressure | 0.61 bar (8.85 psi) |
| For use with... | MP Filtri Portable Contamination Monitoring Products |
| Supply Voltage | 12V, 2A |
| Wetted Parts (Internal) | Aluminium HE30, 303 Stainless Steel, Polyurethane, FPM, Acrylic |
| On/Off and Stop/Start signals | Switch (Manual Operation) |
| Hydraulic Hoses (External) | 600mm x 2mm ID M16x2 microbore pressure hose |
| Flow Rate (ml/min) | Viscosity dependant |
| Visual Pressure Indicator | No |
| Weight / Dimensions |
Weight: 7kg Dimensions: 212mm (H) x 163mm (D) x 130mm (W) |
| Pressure Gauge | No |
| IP Rating | IP50 |
| Fluid Compatibility | Industrial Hydrocarbon based fluids |
| Min. Outlet Pressure | 1 bar (14.7 psi) |
| Max. Outlet Pressure | 2.0 bar (29 psi) |
| Max. Fluid Temperature (Continuous) | 80oC |
| Max. Viscosity | 400 cSt |
| Min. Viscosity | 1 cSt |
| Ambient Temperature (Continuous) | 10oC to 55oC |
| Power Consumption | 24W |
| Installation | Indoor use (Laboratory Use) |
| Manufacturer | MP Filtri |
