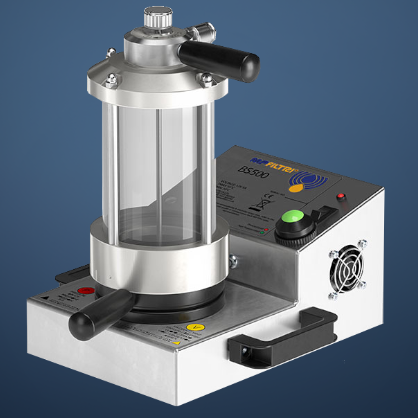

Technical Details for the BS500
The BS500, a 500 ml bottle sampler, serves as an effective solution for off-line and laboratory applications where fluid sampling at the point of use is challenging. With a standard fluid de-aeration facility, it offers reliable and practical fluid sampling capabilities.
Scope of Supply:
1 x 500 ml Bottle Sampling base unit (*)
1 x Top cap, pressure/vacuum chamber (*)
1 x M16x2 microbore pressure hose, 600 mm long
1 x Power adapter
1 x UK/EU/US/AUS/CN power lead*
3 x 210 ml clear glass bottles
2 x 500 ml clear glass bottles
1 x Digital copy of user guides/software/drivers
(*) Specified model as per ordered item
| Max. Chamber Pressure | Standard: 2.5 bar (36.3 psi) High Pressure: 4.5 bar (65.3 psi) |
| Min. Chamber Pressure | 0.61 bar (8.85 psi) |
| For use with... | MP Filtri Portable Contamination Monitoring Products |
| Supply Voltage | 12V, 5A |
| Wetted Parts (Internal) | Aluminium 6082 T6, 303 Stainless Steel, 316 Stainless Steel, Seal and Cylinder material optional |
| On/Off and Stop/Start signals | Switch (Manual Operation) |
| Hydraulic Hoses (External) | 600mm x 2mm ID M16x2 microbore pressure hose |
| Flow Rate (ml/min) | Viscosity dependant |
| Visual Pressure Indicator | Yes |
| Weight / Dimensions |
Weight: 9kg Dimensions: 333mm (H) x 341mm (D) x 264mm (W) |
| Pressure Ranges | 4.5 bar or 2.5 bar options |
| Pressure Gauge | Yes (only on 4.5 bar version) |
| IP Rating | IP50 |
| Fluid Compatibility | Industrial, aerospace and offshore control fluids. |
| Min. Outlet Pressure | 1 bar (14.7 psi) |
| Max. Outlet Pressure | Version dependent: 2.0 bar (29 psi) 4.5 bar (65.3 psi) |
| Max. Fluid Temperature (Continuous) | 800C |
| Max. Viscosity | 400 cSt |
| Min. Viscosity | 1 cSt |
| Ambient Temperature (Continuous) | 100C to 550C |
| Power Consumption | 60W |
| Installation | Indoor use (Laboratory Use) |
| Manufacturer | MP Filtri |
