Technical Details for the CML4

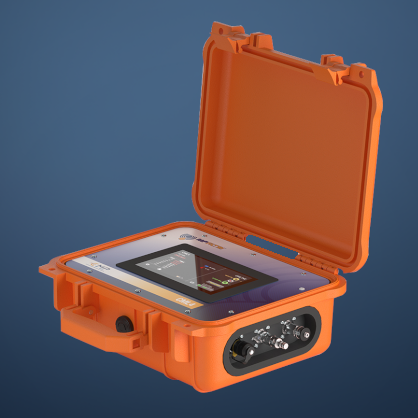

MP Filtri's CML4, the lighter and more compact portable particle counter, delivers a swift and precise hydraulic health check more challenging environments (construction, etc). With real-time monitoring, and a compact 8.5kg design, the CML4 ensures machinery reliability and minimizes downtime by making sure you know when your hydraulic fluids are contaminated. Key features include high-speed sampling, a touchscreen HMI, up to 8 hours battery life, and measurement to ISO4406. The CML4, suitable for mineral oil and synthetic fluids, comes complete with an internal memory for up to 4000 tests.
Scope of Supply:
1 x CML4 (Model: CML4W0M001)
1 x M16x2 microbore pressure hose, 1500 mm long and pouch
1 x 2000 mm quick release waste hose and pouch
1 x 1L waste receptacle
1 x Power Lead (UK)
1 x USB Stick with Digital copy of user guides/ CMP View software/drivers
2 x Hard copy of calibration certificate
1 x 1500 mm quick-release offline hose and pouch (low pressure)
1 x USB C to USB A cable
| Technology | High precision LED light extinction automatic optical particle counter |
| Particle Sizing | >4, 6, 14, 21, 25, 38, 50, 70 μm(c) |
| Analysis range | ISO 4406 NAS 1638 AS4059 Rev E, Table 1 AS4059 Rev E, Table 2 AS4059 Rev F, Table 1 AS4059 Rev F, Table 2 GBT14039 GJB420B GOST 17216 |
| Accuracy | ± 1/2 ISO code for 4, 6, 14 μm(c) ±1 code for larger sizes |
| Calibration | Calibrated with ISO Medium Test Dust (MTD) in accordance with ISO 21018 Part 1 and Part 4 |
| Viscosity Range | Up to 400 cSt |
| Operating Temperatures | Fluid: 5oC to 80oC Ambient: -10oC to 60oC |
| Pressure | Minimum: 2.0 bar (29 psi) Maximum: 350 bar (5076 psi) |
| Moisture Sensing | % RH (Relative Humidity) ±3% |
| Temperature Measurement | ±3oC |
| Data Storage | Approximately 4000 tests |
| Environmental Protection | IP65 (Lid closed) IP54 (Lid open) |
| Power | Lithium Ion rechargeable battery |
| Battery Life | Up to 8hrs |
| Software | CMP View software (included) |
| Dimensions |
Weight: 8.5kg (unit only) Dimensions: 149mm* (H) x 155mm (D) x 350mm (W) *not including handle |
| Manufacturer | MP Filtri |
