Technical Details for the GRF 100

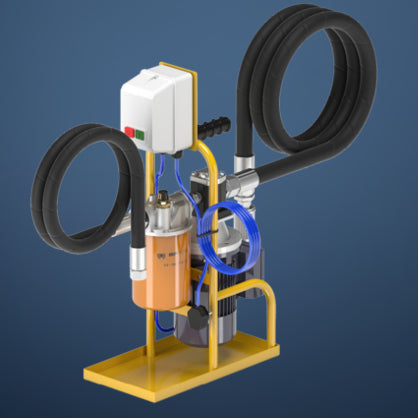

The GRF 100 series of mobile filtration units are designed for transferring hydraulic oils from containers to the reservoir of your system. They ensure clean hydraulic systems and are a great way of cleaning barrels of oil, providing a lightweight, handheld solution for various applications.
Designed and manufactured by MP Filtri, this mobile filtration range offers up to 10L/min of flow and runs with continuous operation at 5 bar. They are quick and easy to set up and easy to maintain, using spin on filters.
| Pump | Gear Pump |
| Electric Motor | 0.37kW 110/230 Volt Single Phase |
| Flow Rate | 10L/min |
| Viscosity Range | 10 cSt to 120 cSt |
| Inlet Filter | 250 µm metal mesh strainer |
| Outlet Filter | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass Indicator set at 1.75bar | Visual clogging indicator gauge - pop-up manual reset |
| Operating Temperatures | Fluid: 0oC to 80oC Ambient: 0oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil |
| Suction / Pressure Hose | SAE100R4 1" swaged female 2000mm hose SAE100R4 3/4" swaged female 2000mm hose |
| Dimensions | Weight: 18kg Dimensions: 697mm (H) x 400mm (D) x 215mm (W) |
| Manufacturer | MP Filtri |
| Filter element - Standard length: Inorganic microfiber element | CS 100 A01 A P01 - 1 µm absolute CS 100 A03 A P01 - 3 µm absolute CS 100 A06 A P01 - 6 µm absolute CS 100 A10 A P01 - 10 µm absolute CS 100 A25 A P01 - 25 µm absolute |
| Filter element - Standard length: Wire-mesh element | CS 100 M25 A P01 - 25 µm CS 100 M60 A P01 - 60µm |
| Filter element - Extended length: Inorganic microfiber element | CS 150 A01 A P01 - 1 µm absolute CS 150 A03 A P01 - 3 µm absolute CS 150 A06 A P01 - 6 µm absolute CS 150 A10 A P01 - 10 µm absolute CS 150 A25 A P01 - 25 µm absolute |
| Filter element - Extended length: Wire-mesh element | CS 150 M25 A P01 - 25 µm CS 150 M60 A P01 - 60 µm |
