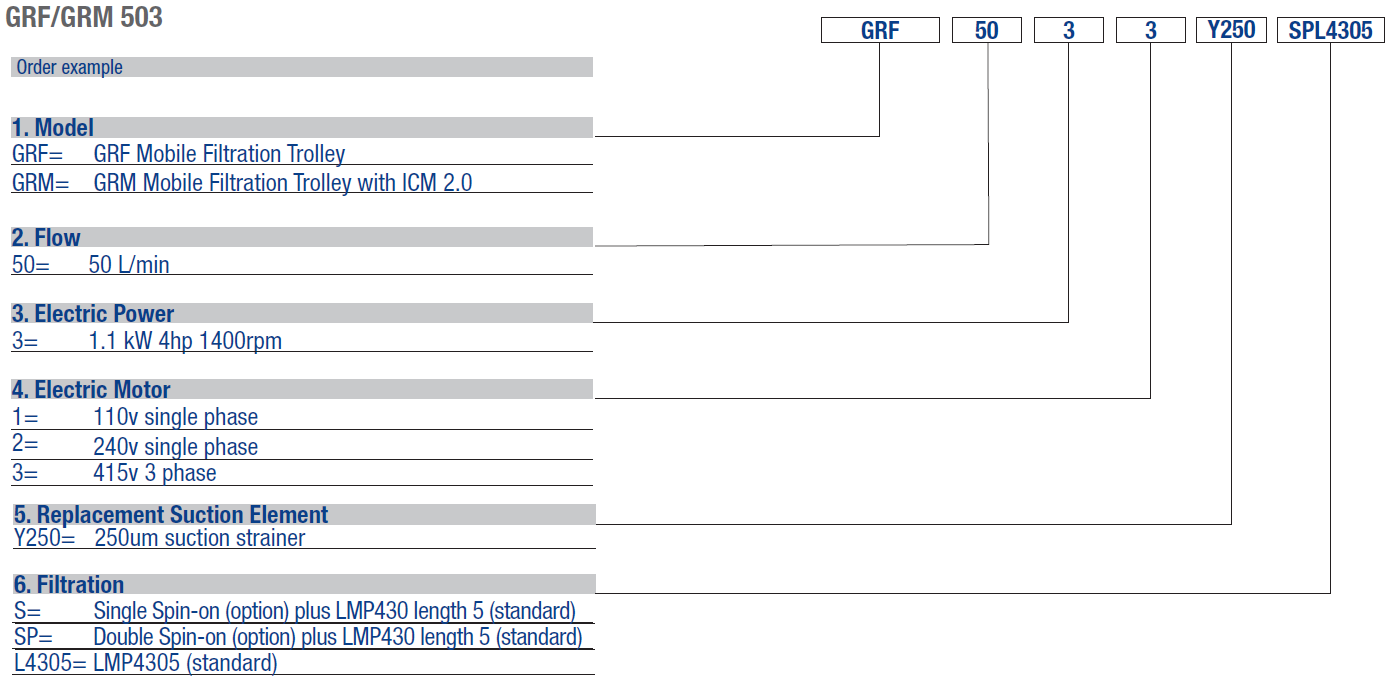

Technical Details for the GRF 503

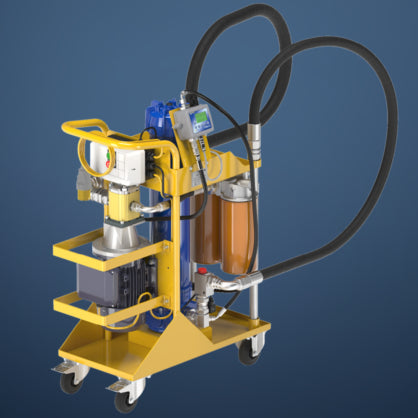

The GRF 503 Mobile Filtration Unit sets the standard for high-performance oil care. With an impressive 50 L/min flow rate and continuous operation at 3.5 bar, it excels in filling and filtering hydraulic fluids and lubrication tanks. Connectable off-line to tanks (recommended max volume 1000 L), it supports fast flushing during start-up and acts as additional filtration for highly contaminated systems. Portable and easy to set up, it includes a wide variety of communication protocols, an electric control box with a pressure safety switch, and indicators for efficient operation. The GRF 503, with water removal option, ensures optimal performance in diverse applications.
Designed and manufactured by MP Filtri, these trolleys are a great asset to have around your hydraulic systems as they offer a great way of filtering fluids as you fill your tank.
| Pump | Gear Pump or Screw Pump (for diesel) |
| Electric Motor | 1.1kW, 1400rpm, 110/240 Volt Single Phase, 415V three-phase |
| Flow Rate | 50L/min |
| Max Operating Pressure | 3.5 bar |
| Viscosity Range | Max. 150 cSt |
| Inlet Filter | 250 µm Y type strainer |
| Outlet Filter | 3/6/10/16/25 μm ß>1000 flow through the element Out/In |
| Bypass Indicator set at 1.75bar | Rating 3.5 bar with bypass (LMP) 1.75 bypass (MPS) Visual/electrical indicator (on LMP) set at 2 bar |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: 0oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil and diesel oil variants |
| Suction / Pressure Hose | SAE100R4 1" swaged female 2000mm hose (available with lances) |
| Dimensions | Weight: 92kg Dimensions: 1151mm (H) x 816mm (D) x 544mm (W) |
| Manufacturer | MP Filtri |
| Filter element - Standard length: Inorganic microfiber element | CS 100 A01 A P01 - 1 μm absolute CS 100 A03 A P01 - 3 μm absolute CS 100 A06 A P01 - 6 μm absolute CS 100 A10 A P01 - 10 μm absolute CS 100 A25 A P01 - 25 μm absolute |
| Filter element - Standard length: Wire-mesh element | CS 100 M25 A P01 - 25 μm CS 100 M60 A P01 - 60 μm |
| Filter element - Extended length: Inorganic microfiber element | CS 150 A01 A P01 - 1 μm absolute CS 150 A03 A P01 - 3 μm absolute CS 150 A06 A P01 - 6 μm absolute CS 150 A10 A P01 - 10 μm absolute CS 150 A25 A P01 - 25 μm absolute |
| Filter element - Extended length: Wire-mesh element | CS 150 M25 A P01 - 25 μm CS 150 M60 A P01 - 60 μm |
| LMP Length 5 elements - Inorganic microfibre element |
CU 400 5 A03 A N P01 - 3 μm absolute CU 400 5 A16 A N P01 - 10 μm absolute |
