Technical Details for the GS-10

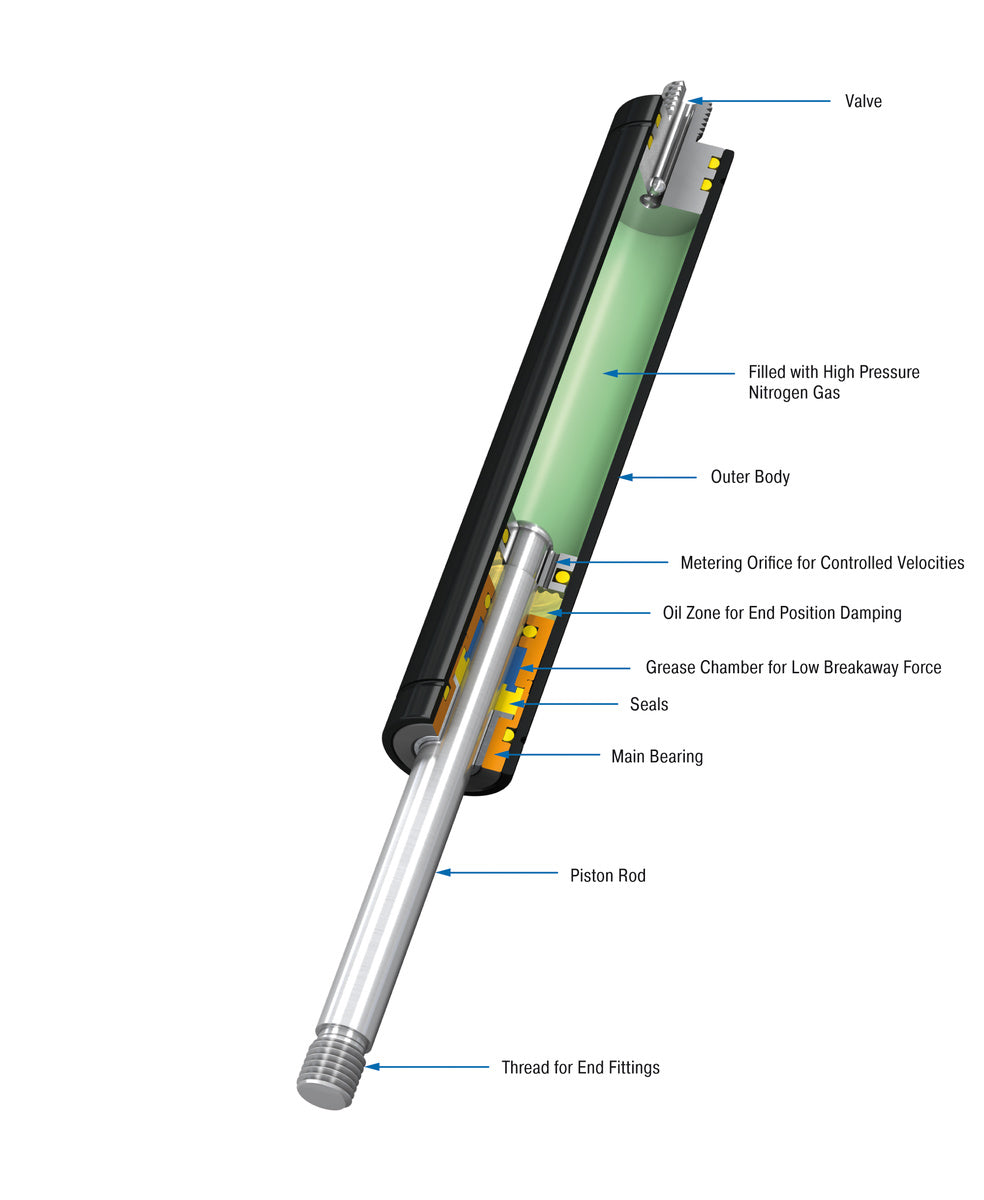

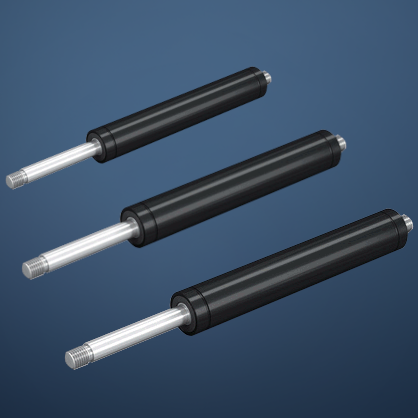

The GS-10 industrial gas spring (strut) from ACE Controls supports lifts where force is between 10 and 100 Newtons. Typically found in hoods, shutters, machine housing, conveyor systems and even furniture, these versatile supports are easy to install and maintenance free.
| Extension Force | 10N to 100N (compressed up to 116N) |
| Stroke | 20mm to 80mm |
| Piston Rod Diameter | 3mm |
| Progression | approx. 13 - 16% |
| Lifetime | approx. 10,000m |
| Operating temperature range | -20oC to +80oC |
| Material | Outer body: coated steel Piston rod: stainless steel (1.4301/1.4305, AISI 304/303) End fittings: zinc plated steel |
| Operating Fluid | Nitrogen Gas and Oil |
| Mounting | Recommended mounting with piston rod downwards to take advantage of the built-in end position damping. |
| End position damping length | approx. 5 mm (depending on the stroke) |
| Positive stop | External positive stop at the end of stroke provided by the customer |
| Manufacturer | ACE Stoßdämpfer GmbH |

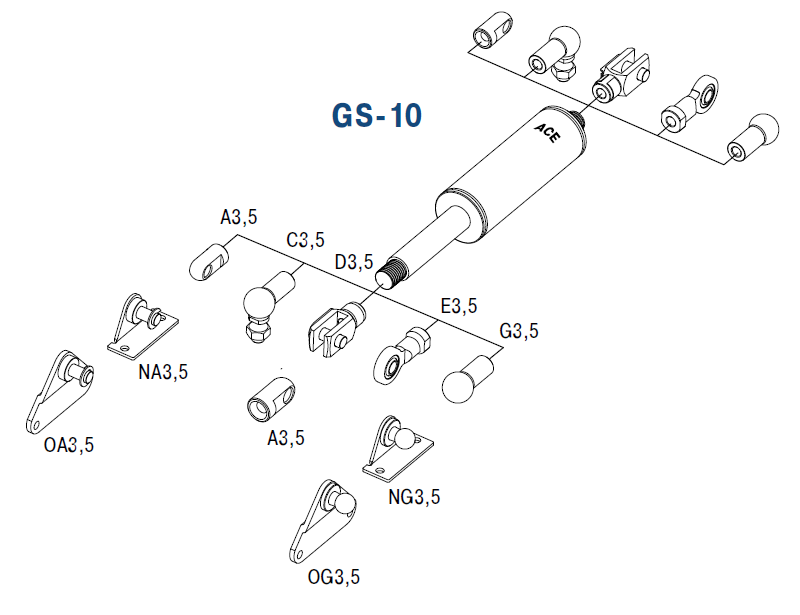

| A3.5 | |
| C3.5 | |
| D3.5 | |
| E3.5 | |
| G3.5 | |
| NA3.5 | |
| NG3.5 | |
| OA3.5 | |
| OG3.5 | |
| DE-GAS-3.5 |
