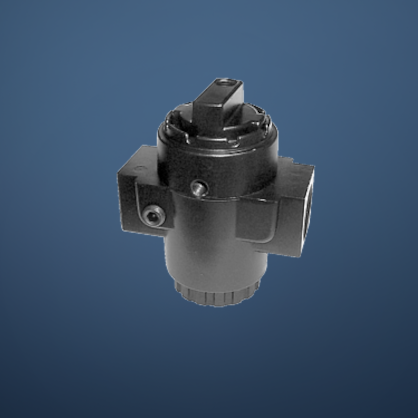

Technical Details for the High-Flow Series Inline Relief Valves

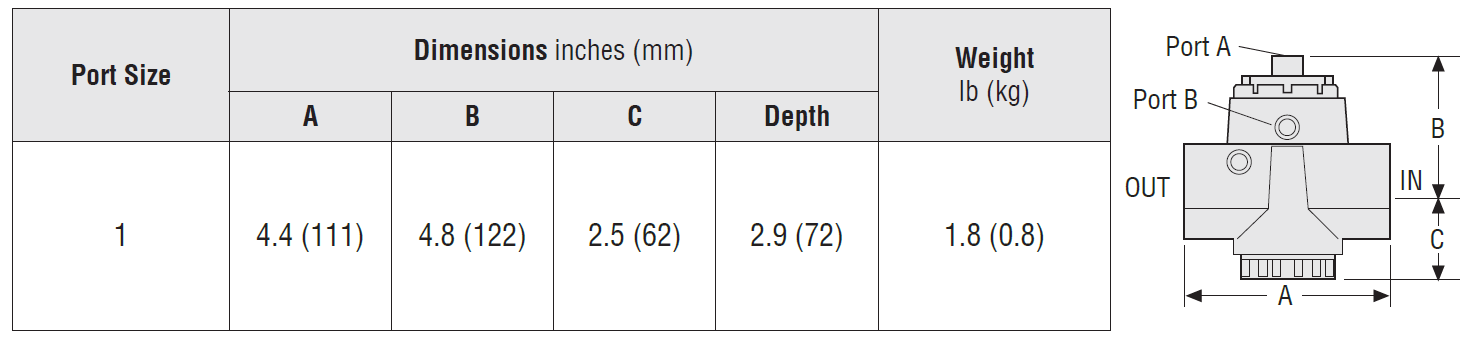

Port Sizes: 1"

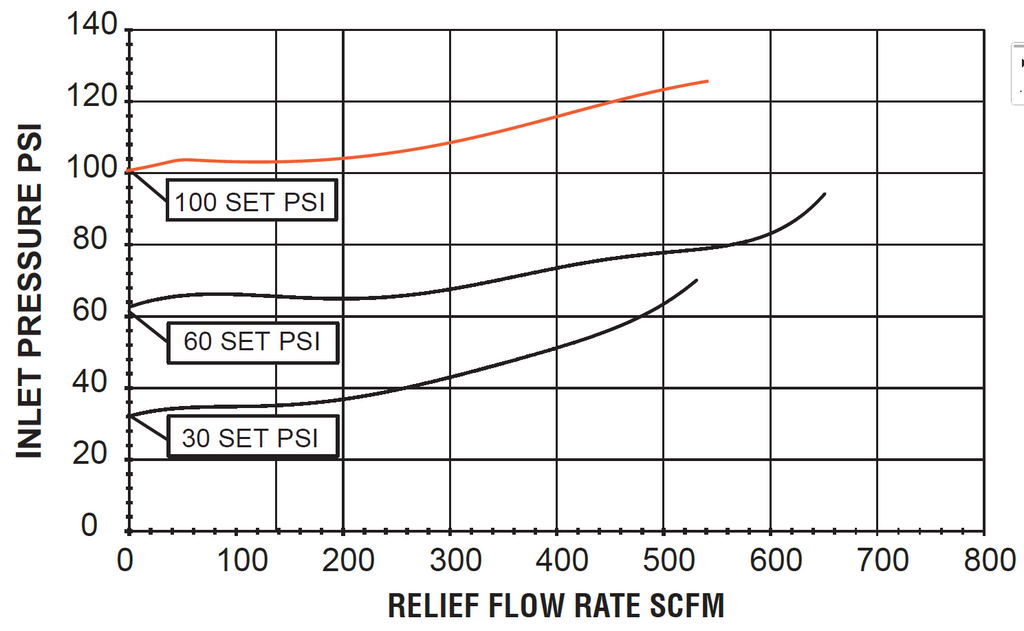

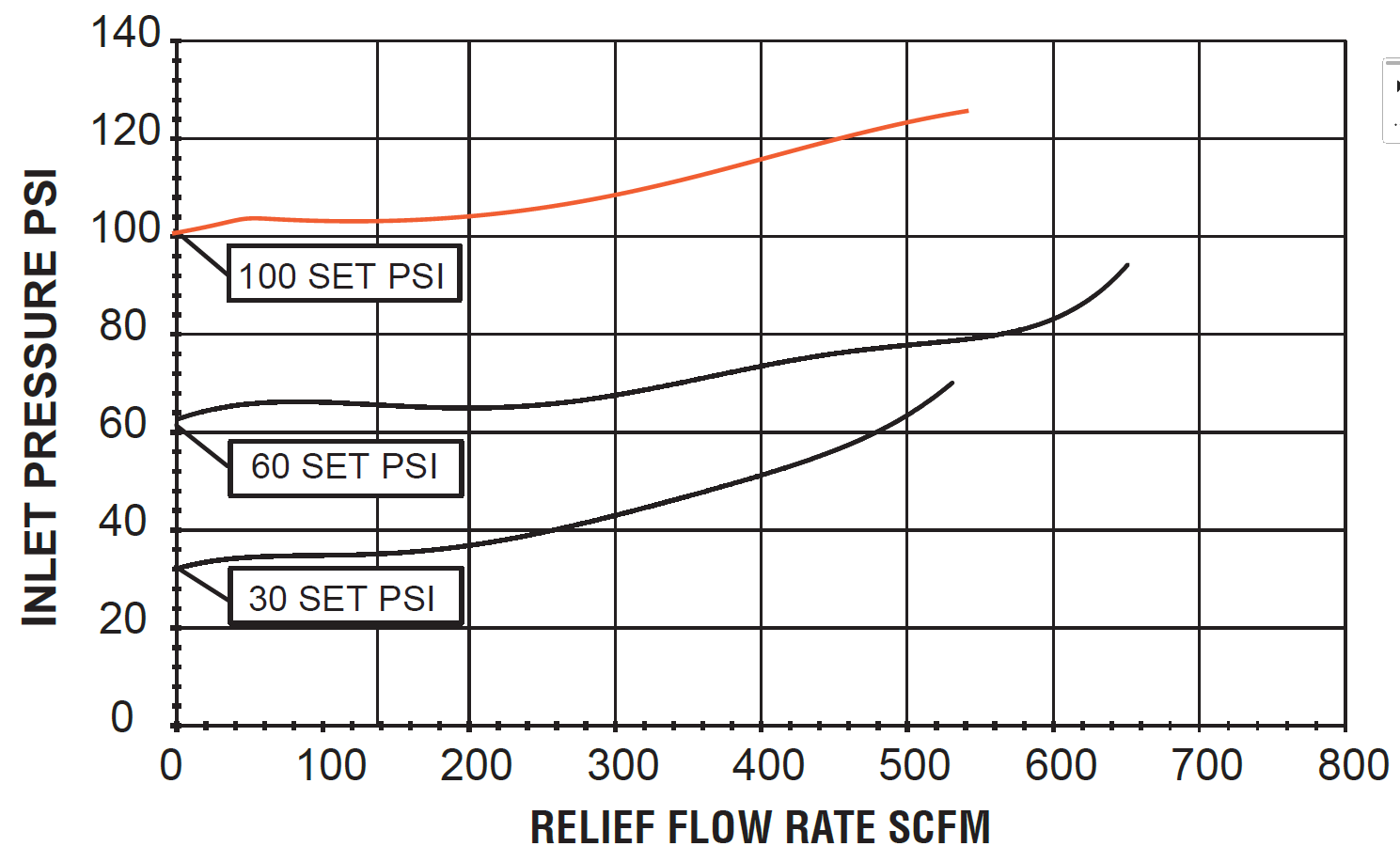

Flow Rate: Up to 450 scfm (212 l/s)
The High-Flow Series Relief Valves by Ross are engineered to deliver high-capacity pressure relief in demanding applications. These inline relief valves feature a robust diaphragm construction, ensuring precise and efficient pressure control.
Key features of the High-Flow Series include:
- Diaphragm Construction: Guarantees accurate pressure regulation and enhances the valve's durability and performance.
- Self-Relieving Capability: These valves are self-relieving, allowing them to efficiently manage and relieve excess pressure, thereby maintaining system stability and safety.
| Construction | Self-Relieving diaphragm |
| Ambient Temperature | 4oC (40oF) to 79oC (175oF) |
| Fluid Media | Compressed Air |
| Inlet Operating Pressure | Maximum 200 psig (14 bar) |
| Outlet Operating Pressure | Adjustable 0 to 200 psig (0 to 14 bar) |
| Pilot Ports | 1/4" NPTF |
| Pressure Gauge | 0 to 200 psig (0 to 14 bar) 1/4" NPT gauge ports front and rear |
| Panel Mounting | 1-3/16" (30mm) hole required |
| Body | Aluminium |
| Dome | Zinc |
| Valve | Brass |
| Valve Cap | Nylon |
| Seals | Nitrile |
| Manufacturer | Ross Controls |
