Technical Details for the ICM 2.0

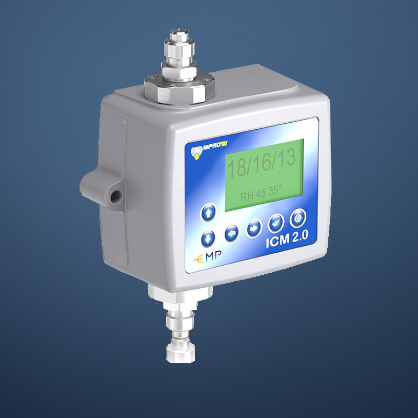

MP Filtri's ICM 2.0 In-Line Contamination Monitor is designed to provide accurate measurements and real-time displays of particulate contamination, moisture, and temperature levels in various hydraulic fluids. It is specifically made for direct mounting to systems where continuous measurement or analysis is essential, considering space and cost limitations.
Scope of Supply:
1 x ICM 2.0 *
1 x 3m Twisted Pair Cable Assembly
1 x Hard copy Quick start/wiring installation guide
1 x Hard copy Fluid Condition Handbook
1 x Digital copy of user guides/software/drivers
1 x Hard copy of calibration certificate
(*) Specific model will be as per ordered item
| Technology | LED based Light Extinction Automatic Optical Particle Counter |
| Particle Sizing | >4, 6, 14, 21, 25, 38, 50, 70 μm(c) |
| Analysis range | ISO 4406 Codes 8 to 24 NAS 1638 Class 2 to 12 AS4059/ISO 11218 Rev E, Table 1 Size Codes 2-12 AS4059/ISO 11218 Rev E, Table 2 Size Codes, A: 000 TO 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 AS4059 Rev F, Table 1 Size Codes 2-12 AS4059 Rev F, Table 2 Size Codes cpc [000 to 12, 00 to 12, 00 to 12, 2 to 12, 4 to 12, 7 to 12] GBT14039 Codes 8-24 GJB420B Size Codes, A: 000 to 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 Please Note: Lower Limits are Test Volume dependent |
| Accuracy | ± 1/2 ISO code for 4, 6, 14 μm(c) ±1 code for 21, 25, 38, 50, 70 μm(c) |
| Calibration | Individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171, on equipment certified by I.F.T.S to ISO 11943 |
| Operating Flow Rate | 20 - 400 ml/minute |
| Viscosity Range | Up to 1000 cSt |
| Operating Temperatures |
Fluid: -25oC to 80oC Ambient: -25oC to 80oC (non K version) |
| Pressure | Maximum: 420 bar (6092 psi) static |
| Test Time | Adjustable 10 - 3600 seconds. Factory set to 120 seconds. Start delay & programmable test intervals available as standard. |
| Flow rate measurement | Indicator only |
| Moisture Sensing | % RH (Relative Humidity) ±3% |
| Temperature Measurement | ±3oC |
| Data Storage | Up to 4000 tests |
| Communication Options |
RS485, MODBUS, CANBUS 4-20mA time multiplex as standard |
| Relays | Two solid state relays fitted to “R” version for output to alarm circuits |
| Environmental Protection | IP65/67 versatile IK04 Impact Protection |
| Supply Voltage | 9 - 36VDC |
| Power Consumption | < 2.2 W |
| Outer Casing Finish |
Polyurethane BS X34B. Colour BS381-638 (Dark Sea Grey) Industry 4.0 ready with appropriate accessory product |
| Wetted Parts |
M - C46400 Cu alloy, 316 stainless steel, FPM, FR4, sapphire N - 316 stainless steel, FPM, sapphire. S - 316 stainless steel, perfluoro elastomer, sapphire, EPDM. |
| Software |
LPA View software (included) ICM 2.0 is supplied with a full software package and digital product information |
| Dimensions |
Weight: 1.6kg Dimensions: 123mm (H) x 65mm (D) x 142mm (W) |
| Manufacturer | MP Filtri |
