Technical Details for the ICU

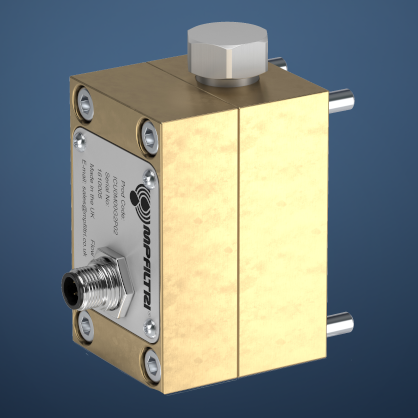

MP Filtri's ICU, or In-Line Contamination Monitoring Unit, is a device designed for industrial applications, offering automatic measurement of particulate contamination levels in various hydraulic fluids. This unit is designed for manifold mounting directly onto systems, offering continuous measurement or analysis in scenarios where space and cost considerations are crucial.
With its 3 channel contamination measurement capabilities, it focuses on providing accurate and reliable data on particulate contamination levels in hydraulic fluids. The unit adheres to the ISO 4406 standard, ensuring consistent and standardised measurements. Its robust design and construction make it suitable for the demanding conditions of industrial applications. With a maximum pressure handling capability of 350 bar, the ICU is versatile and can be employed in various hydraulic systems.
Scope of Supply:
1 x ICU0M00G5P01
1 x Installation Kit
4 x M6x1.0x60 mm long fixing bolts
2 x 6.50 ID x 1.5 CSD FKM o-ring seals
1 x Hard copy of calibration certificate
| Technology | LED based Light Extinction Automatic Optical Contamination Monitor |
| Particle Sizing | >4, 6, 14 μm(c) |
| Analysis range | ISO 4406 Codes 0 to 20 |
| Accuracy | ± 1/2 ISO code for 4, 6, 14 μm(c) across the analysis range |
| Calibration | Individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171, on equipment certified by I.F.T.S to ISO 11943 |
| Operating Flow Rate | 200 ml/minute controlled by the built in flow control valve |
| Viscosity Range | Up to 1000 cSt |
| Operating Temperatures | Fluid: 0oC to 80oC |
| Pressure | Minimum: 25 bar (362 psi) |
| Test Time | Adjustable 10 - 3600 seconds. |
| Communication Options | 4-20mA time multiplex as standard |
| Environmental Protection | IP65/67 versatile |
| Supply Voltage | 24VDC ± 20% |
| Power Consumption | < 2.2 W |
| Cable | Electrical cable has to be ordered separately (optional accessory), MP Filtri item no. 13.061000 - ICU Cable M12 4 pin 1.5m long |
| Software |
LPA View software (included) ICU is supplied with a full software package and digital product information |
| Dimensions |
Weight: 1.4kg Dimensions: 70mm (H) x 50mm (D) x 93mm (W) |
| Manufacturer | MP Filtri |
