Technical Details for the LPA3

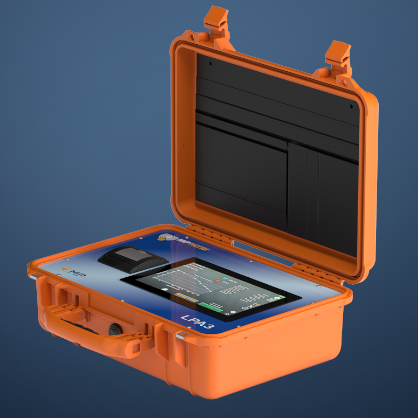

MP Filtri's LPA3, the pinnacle of portable particle counters, delivers a swift and precise hydraulic health check in challenging environments. With real-time monitoring, predictive maintenance, and a compact 10kg design, it ensures machinery reliability and minimizes downtime. Key features include high-speed sampling, a programmable touchscreen, compatibility with Bottle Samplers, and measurement of international standards. The LPA3, suitable for hydraulic, lubrication, and subsea fluids, comes complete with an integrated printer and a comprehensive accessories kit for seamless operation.
Scope of Supply:
1 x LPA3 (*)
1 x M16x2 microbore pressure hose, 1500 mm long, pouch
1 x 2000 mm quick release waste hose for LPA3 and pouch
1 x 1L waste receptacle
1 x Power Lead c/w UK/EU/US/AUS/CN heads
1 x USB cable
1 x Digital USB copy of user guides/software/drivers
2 x Hard copy of calibration certificate
5 x Thermal printer paper
1 x Carry bag
(*) Specific model will be as per ordered item
| Technology | High precision LED light extinction automatic optical particle counter |
| Particle Sizing | >4, 6, 14, 21, 25, 38, 50, 70 μm(c) |
| Analysis range | ISO 4406 Codes 8 to 24 NAS 1638 Class 2 to 12 AS4059/ISO 11218 Rev E, Table 1 Size Codes 2-12 AS4059/ISO 11218 Rev E, Table 2 Size Codes, A: 000 TO 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 AS4059 Rev F, Table 1 Size Codes 2-12 AS4059 Rev F, Table 2 Size Codes cpc [000 to 12, 00 to 12, 00 to 12, 2 to 12, 4 to 12, 7 to 12] GBT14039 Codes 8-24 GJB420B Size Codes, A: 000 to 12, B: 00 to 12, C: 00 to 12, D: 2 to 12, E: 4-12, F: 7 to 12 Please Note: Lower Limits are Test Volume dependent |
| Accuracy | ± 1/2 ISO code for 4, 6, 14 μm(c) ±1 code for 21, 25, 38, 50, 70 μm(c) |
| Calibration | Individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171, on equipment certified by I.F.T.S to ISO 11943 |
| Viscosity Range | Up to 400 cSt |
| Operating Temperatures | Fluid: 5oC to 80oC Ambient: -10oC to 80oC |
| Pressure | Minimum: 2.0 bar (29 psi) Maximum: 420 bar (6092 psi) static |
| Sample Volume | Maximum 100 ml / 3.38 fl oz per pump stroke. |
| Test Time | Test volumes programmable by end user. Pre-set volumes also available. |
| Moisture Sensing | % RH (Relative Humidity) ±3% |
| Temperature Measurement | ±3oC |
| Data Storage | Approximately 4000 timestamped tests in the integral LPA3 memory |
| System Pressure Measurement | ± 0.5% Full Scale Accuracy Min 10 bar |
| Communication Options | 2 USB output ports 1 x USB B type for direct connection to PC and software 1 x USB A type for direct data download to USB memory stick |
| Environmental Protection | IP66 (Lid closed) IP54 (Lid open) |
| Supply Voltage | 18 - 19VDC |
| Power | Long-life Lithium Ion internal rechargeable battery (mains charger) |
| Software | LPA View software (included) |
| Dimensions |
Weight: 10kg Dimensions: 350mm* (H) x 170mm (D) x 470mm (W) *not including handle |
| Manufacturer | MP Filtri |
