Technical Details for the MA225EUM

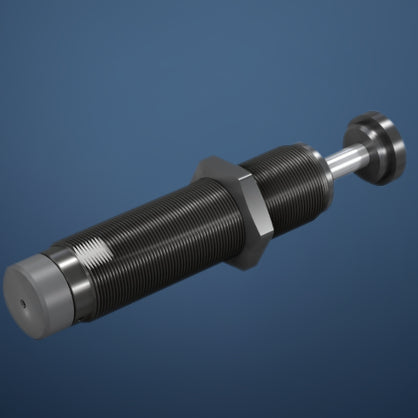

The MA225EUM is a compact, adjustable miniature shock absorber designed by ACE for applications with lower precision requirements. With a 25 Nm energy capacity per cycle and an 19 mm stroke, it offers soft damping characteristics and flexibility for a variety of applications. Ideal for use in handling modules, linear carriages, and situations with changing application data.
The MA225EUM provides stepless adjustment for tailored damping performance and is maintenance-free, with an integrated positive stop for reliable operation. Constructed with a corrosion resistant steel outer body and a stainless steel piston rod for durability. The damping medium is a temperature-stable oil, ensuring consistent performance even under varying conditions.
| Energy capacity | 25 Nm/Cycle |
| Stroke | 19 mm |
| Effective Weight | 2.3 - 226kg |
| Return Force | 5N - 10N |
| Return Time | 0.1s |
| Side Load Angle max. | 2o |
| Adjustment | Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS. |
| Impact velocity range | 0.15 m/s to 4.5 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel |
| Damping Medium | Oil, Temperature Stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
