Technical Details for the MA64150EUM

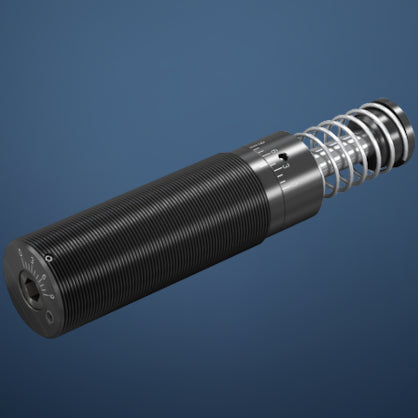

The ACE MA64150EUM Industrial Shock Absorber is designed for maximum durability, precision, and performance in high-impact, heavy-duty applications. With an impressive energy capacity of 6,780 Nm per cycle, this adjustable shock absorber absorbs up to 50% more energy than previous models, while its compact, nitride-hardened steel body and chrome-plated piston ensure long-lasting strength. Ideal for industrial environments, it operates across a wide range of loads (330 kg to 80,000 kg) and adapts easily with its front and rear damping adjustment, providing precise control over impact force and ensuring smoother, safer machinery operations.
Optional noise reduction and enhanced corrosion protection are available to meet specific industry needs, making it the ultimate choice for efficiency and reliability.
| Energy capacity | 6,780 Nm/Cycle |
| Stroke | 150 mm |
| Return Force | 75 - 365N |
| Return Time | 0.48s |
| Side Load Angle max. | 2o |
| Impact velocity range | 0.15 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -12oC to +66oC |
| Material | Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened |
| Damping Medium | Automatic Transmission Fluid (ATF) |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
