Technical Details for the MC150EUM

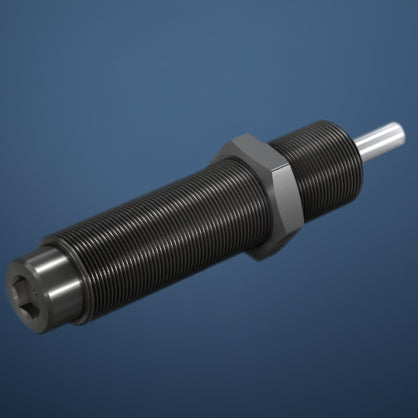

The MC150EUM is a high-performance, self-compensating miniature shock absorber designed with ACE's advanced rolling diaphragm technology. This feature ensures hermetic sealing, separating the damping fluid from surrounding air and enabling direct installation in pressure chambers up to 7 bar. The absorber offers exceptional durability, supporting up to 25 million cycles with low resetting forces, making it maintenance-free and ready for immediate use.
The MC150EUM is ideal for use in linear slides, pneumatic cylinders, swivel units, handling modules, machines, measuring tables, and other industrial systems requiring compact and reliable energy absorption. This shock absorber's versatility, durability, and advanced design make it a top choice for demanding industrial applications.
| Energy capacity | 20 Nm/Cycle |
| Stroke | 12 mm |
| Impact velocity range | 0.06 m/s to 6 m/s. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Accessories: steel corrosion-resistant coating; Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM |
| Damping Medium | Oil, Temperature Stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
