Technical Details for the MC3350EUM-V4A

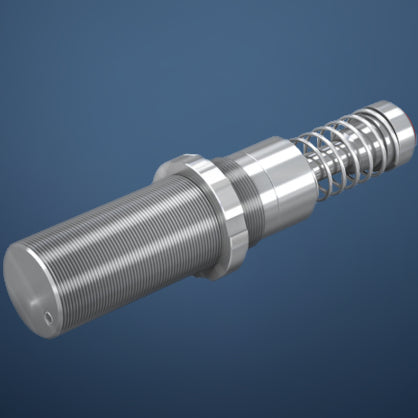

The MC3350EUM-V4A industrial shock absorber is specifically designed for environments requiring superior corrosion resistance and compliance with food industry standards. Crafted from stainless steel (1.4404, AISI 316L) with advanced sealing technology, it features NSF-H1-approved damping oil for safe use in food processing applications. Its self-compensating design provides high energy absorption, durability, and ease of installation.
The MC3350EUM-V4A is an ideal solution for applications requiring maximum corrosion protection and compliance with stringent industry standards, delivering reliable damping performance and long service life.
| Energy capacity | 330 Nm/Cycle |
| Stroke | 48.6 mm |
| Return Force | 45 - 135N |
| Return Time | 0.06s |
| Side Load Angle max. | 3o |
| Impact velocity range | 0.15 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -12oC to +66oC |
| Material | Outer body, Main bearing, Accessories, Locking ring: stainless steel (1.4404, AISI 316L); Piston rod: hard chrome plated steel; Rod end button: stainless steel (1.4404, AISI 316L) with elastomer insert; Return spring: stainless steel |
| Damping Medium | Special oil NSF-H1 approved |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
