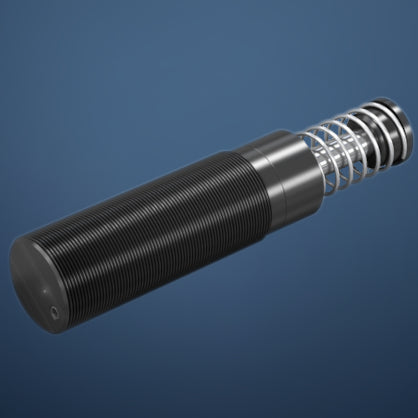

Technical Details for the MC4525EUM-LT
The MC4525EUM-LT industrial shock absorber is designed for extreme low-temperature applications. Built from nitride-hardened steel with advanced sealing technology, it ensures consistent damping performance from -50 oC to +66 oC. This self-compensating unit integrates high energy absorption capabilities, a fixed positive stop, and a wide damping range in a compact, durable design.
The MC4525EUM-LT is a dependable solution for extreme environments, delivering precision damping and long service life under the harshest conditions..
| Energy capacity | 370 Nm/Cycle |
| Stroke | 23.1 mm |
| Return Force | 70 - 100N |
| Return Time | 0.03s |
| Return Time at -50oC | 0.08s |
| Side Load Angle max. | 4o |
| Impact velocity range | 0.15 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -50oC to +66oC |
| Material | Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened |
| Damping Medium | Low temperature hydraulic oil |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
