Technical Details for the MC4550EUM

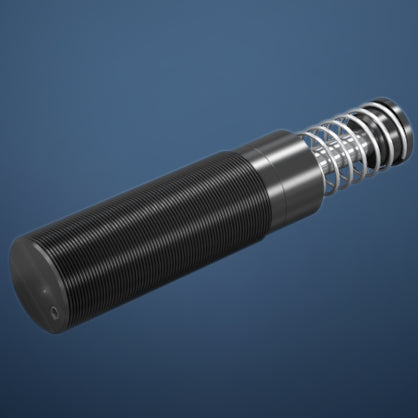

The MC4550EUM industrial shock absorber features advanced damper technology for superior energy absorption and durability. With a robust design, integrated positive stop, and self-compensating functionality, it offers reliable damping in challenging conditions. Compact yet powerful, it ensures optimal machine performance and extended service life.
The MC4550EUM is a versatile and robust solution designed to improve machine performance through reliable and efficient damping, even under challenging conditions.
| Energy capacity | 740 Nm/Cycle |
| Stroke | 48.5 mm |
| Return Force | 70 - 145N |
| Return Time | 0.08s |
| Side Load Angle max. | 3o |
| Impact velocity range | 0.15 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -12oC to +66oC |
| Material | Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened |
| Damping Medium | Automatic Transmission Fluid (ATF) |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
