Technical Details for the MC600EUM-V4A

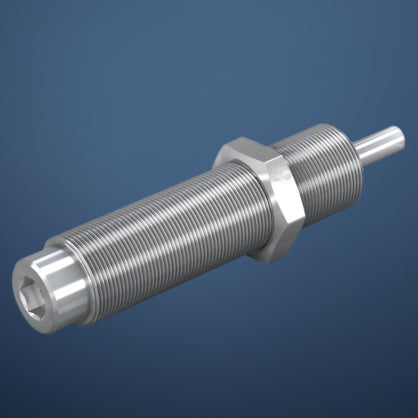

The MC600EUM-V4A is a high-performance miniature shock absorber designed for applications requiring durability, precision, and corrosion resistance. Manufactured from stainless steel (1.4404, AISI 316L), it features advanced rolling diaphragm technology, ensuring long service life and consistent performance.
The MC600EUM-V4A delivers reliable performance across various industries, including medical, electrotechnology, shipbuilding, chemicals, and food processing, making it a versatile choice for demanding applications.
| Energy capacity | 136 Nm/Cycle |
| Stroke | 25.4 mm |
| Impact velocity range | 0.06 m/s to 6 m/s. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Locknut, Accessories: stainless steel (1.4404, AISI 316L); Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM |
| Damping Medium | Oil, Temperature Stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
