Technical Details for the MC6450EUM-HT

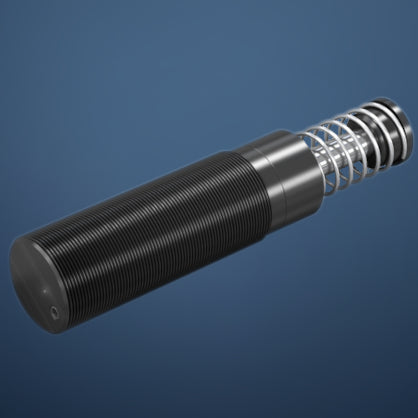

The MC6450EUM-HT industrial shock absorber is built for high-temperature applications, excelling in environments with temperatures ranging from 0 oC to 150 oC. Its self-compensating design incorporates special seals and synthetic high-temperature oil, ensuring reliable performance even at high cycle frequencies. Compact yet robust, it offers excellent energy absorption and a fixed positive stop for precision damping.
The MC6450EUM-HT combines innovative engineering with robust materials to provide dependable, high-performance damping in extreme heat conditions.
| Energy capacity | 1,870 Nm/Cycle |
| Energy capacity at 20oC | 419,000 Nm/h |
| Energy capacity at 100oC | 159,000 Nm/h |
| Stroke | 48.6 mm |
| Return Force | 90 - 155N |
| Return Time | 0.12s |
| Side Load Angle max. | 4o |
| Impact velocity range | 0.15 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +150oC |
| Material | Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened |
| Damping Medium | Synthetic high temperature oil |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
