Technical Details for the PIK

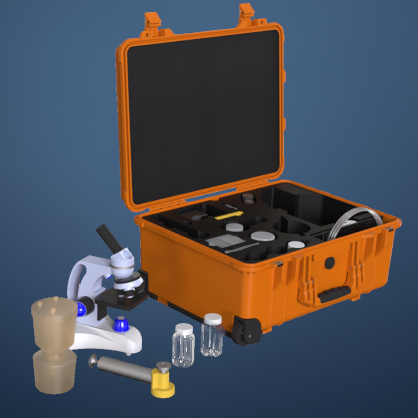

The Patch Imaging Kit (PIK) from MP Filtri offers high-resolution microscopic visual analysis of contamination in fluids, providing a solution for sample-testing and analysis. This kit facilitates a detailed examination of particles under magnification, up to 400x, delivering data and results to your laptop or PC. Designed to be rugged and robust yet portable, the PIK allows fast and accurate testing outside the laboratory environment.
After determining the nature and sizes of particles inside the fluid, the kit allows for quantitative contamination analysis. Fluid samples can be analysed with an automated particle counter or a portable particle counter linked directly to the system, providing immediate results according to standard ISO 4406 or NAS 1638. Note that portable particle counters require a minimum pressure to work correctly and produce immediate results.
The Patch Imaging Kit is a sophisticated solution for fluid contamination analysis, combining advanced digital microscopy with user-friendly features and a comprehensive kit for accurate testing in various environments.
Scope of Supply:
Heavy-duty orange Peli-case
Peli-case foam insert
Self-adhesive patch test covers
Patch test membranes - 1.2 μm
Spray bottle
2 x Stainless steel tweezers
Hand-pump
Waste bottle
3 x Clean bottles
Reusable Nalgene filter assembly
0.01mm Calibration slides
Microscope power adaptor
USB Data stick (includes microscope software and PDF manual)
Hose pouch
1 x Hose - 8 x 6 mm Nalgene vacuum cable
1 x Hose - 6 x 4 mm Hand pump sampling cable
Swift Microscope SW150 and accessories including cable and viewer
Microscope camera - 1.3MP
Serial plate for patch imaging kit
A5 document wallet
Patch test report cards
Optional: Electric Vacuum Pump
| Digital Microscope | Connects directly to PC/laptop, fully rotatable monocular head, available magnification settings of 40X, 100X, and 400X. |
| Dual-Illumination System: | Allows examination of both transparent and solid specimens. |
| Design | Metal carrying handle, cordless capability, practical for field experiments. |
| Sampling | Hand Pump (Optional Electric Vacuum Pump) |
| Patch Test | Patch test membranes -1.2 μm |
| Digital Analysis | Swift Microscope SW150 and accessories including cable and viewer. Microscope camera - 1.3MP Easy-View software for digital analysis |
| Samples Filtration System | Reusable Nalgene filter assembly Waste bottle 3 x Clean bottles Spray bottle |
| Accessories for identification and test report | Patch test report cards 0.01 mm Calibration slides Self-adhesive patch test covers |
| Weight / Dimensions |
Weight: 12.5kg Dimensions: 265mm (H) x 390mm (D) x 519mm (W) |
| Manufacturer | MP Filtri |
