Technical Details for the PMC600EUM

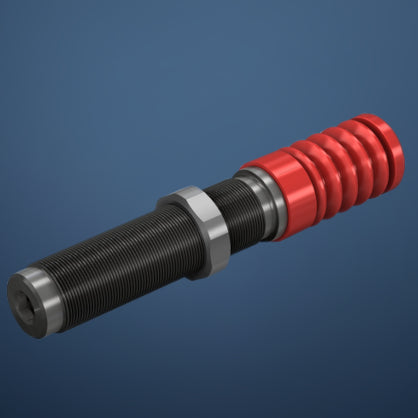

The ACE PMCN600EUM Miniature Shock Absorber combines robust fluid protection with reliable performance in challenging environments. Featuring a compact, hermetically sealed TPU (thermoplastic polyurethane) bellow, this absorber shields its internal ACE rolling diaphragm from aggressive cutting, lubricating, and cleaning agents. With an energy capacity of 136 Nm per cycle and a 25.4 mm stroke, it ensures effective deceleration without the risk of contamination. Designed for durability and maintenance-free operation, the PMCN600EUM is ideal for applications like machining centres and mechanical engineering setups where conventional dampers may wear quickly. The shock absorber can be mounted in any position. An optional stainless steel version is available.
| Energy capacity | 136 Nm/Cycle |
| Stroke | 25.4 mm |
| Impact velocity range | 0.06 m/s to 6 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body: steel corrosion-resistant coating; Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Bellow: TPU, steel insert: stainless steel (1.4404/1.4571, AISI 316L/316Ti); Rolling diaphragm: EPDM |
| Operating Fluid | Oil, temperature stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
