Technical Details for the RM610

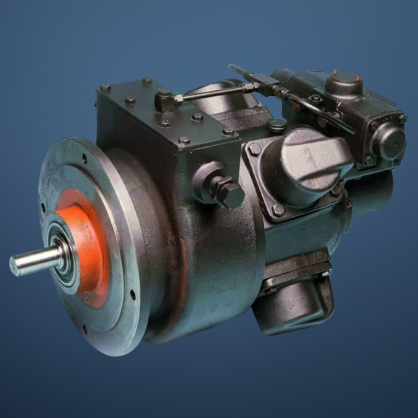

Presenting the RM610 motor, featuring a robust five-cylinder radial piston design with oil bath lubrication, offering superior power within a compact 125kg (276lbs) housing. The moment of inertia for rotating parts is 48 lb.in² / 14 gm² (motor only). Now manufactured by Globe Airmotors B.V., the RM610 originates from the old Globe Pneumatic (Fenner) models and are equivalent to the MZR24. This heavy-duty air motor delivers power up to 23kW making it the largest air motor we supply. Explore a range of modular options, including brake, gearbox, foot bracket and control valve, providing opportunities for enhanced customisation.

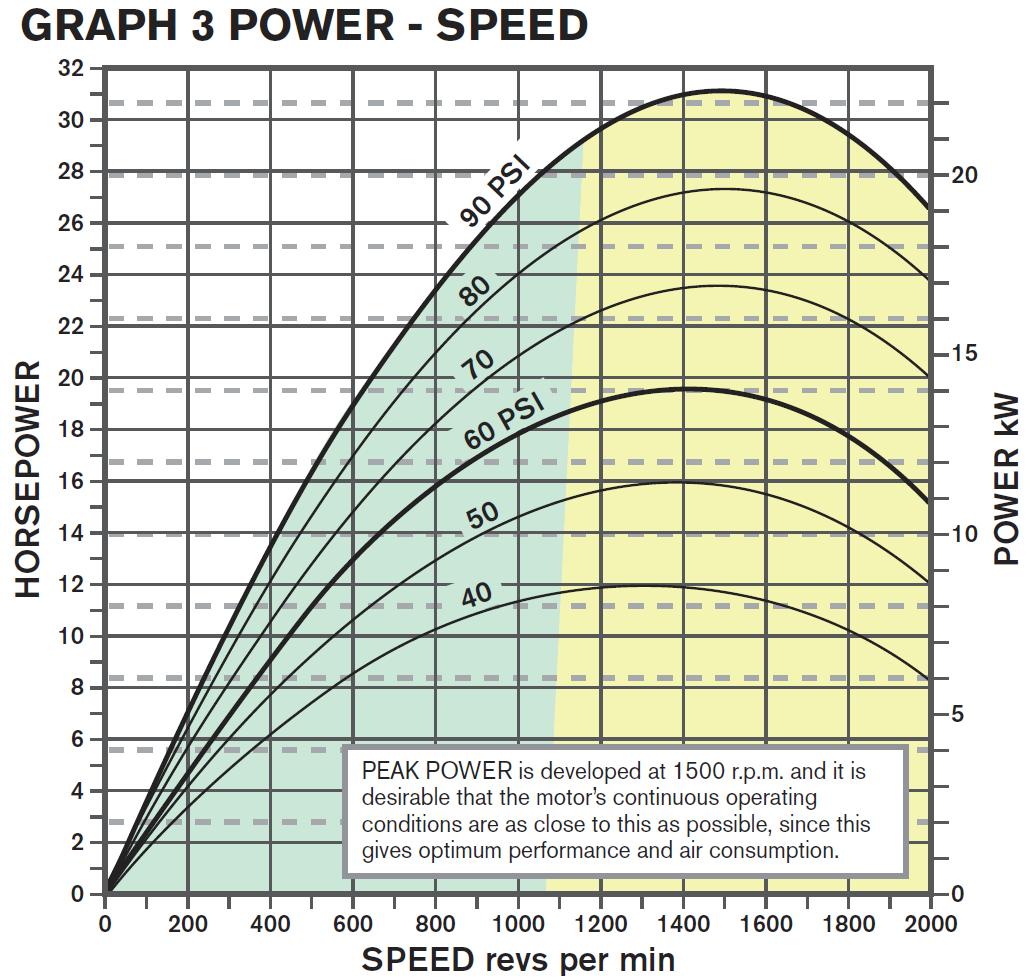

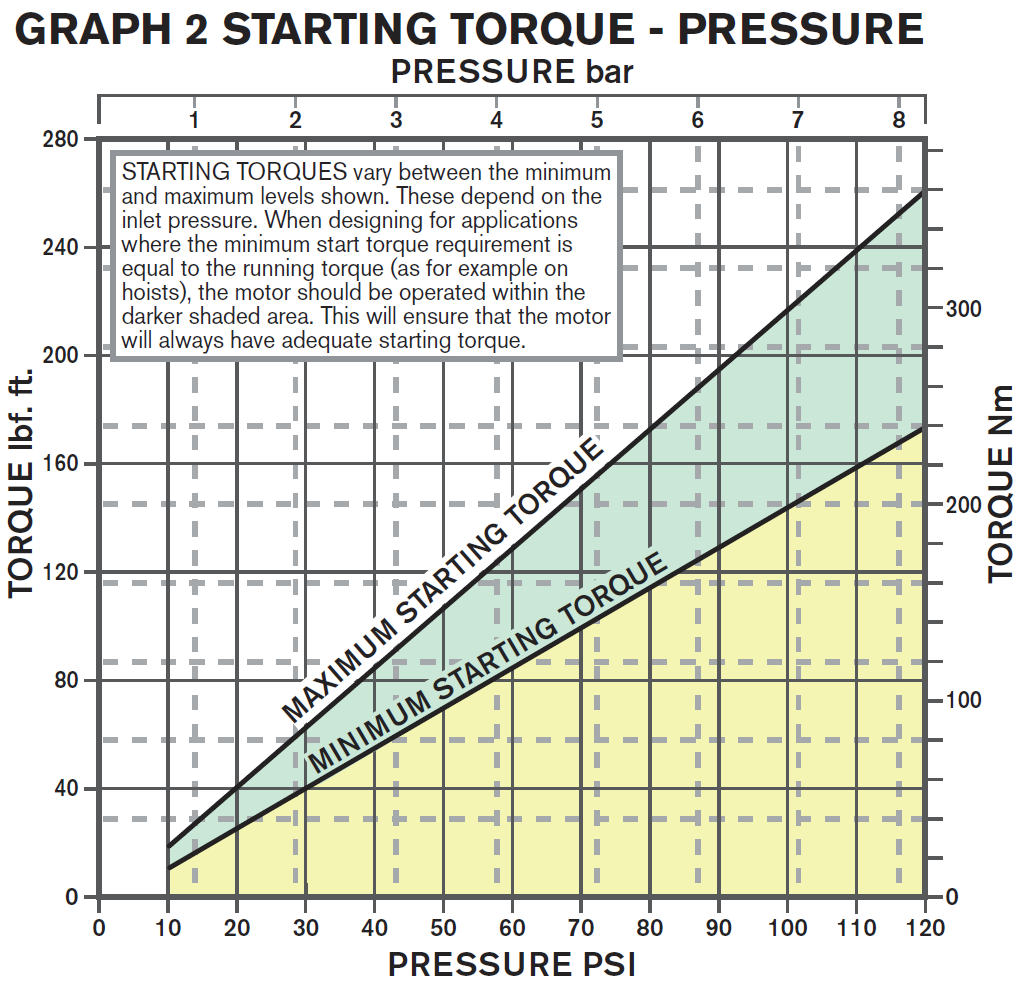

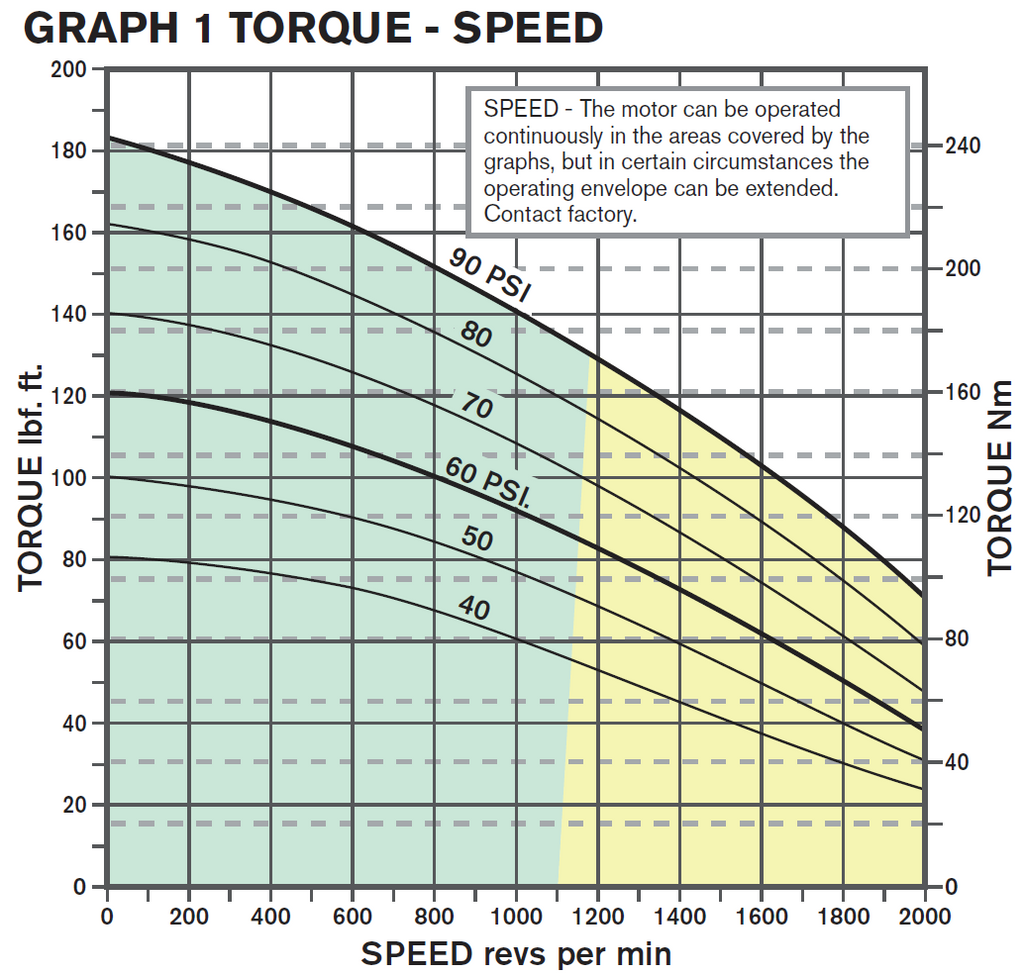

The motor's performance can be inferred from the provided performance graphs. These graphs illustrate the motor's performance in isolation, without the valve. Valves introduce minimal pressure drop, maintaining output torque while reducing motor output speed by around 10-15% at 6 bar (90 psi) under maximum power. Starting torque remains unaffected. For applications like fan drives, where motors don't start under load, either Graph 1 (Torque-Speed) or Graph 3 (Power-Speed) can be used based on the required running torque or power alone. However, for applications such as hoists, winches, or track drives, where the motor starts under load, Graph 2's starting torque must also be considered. The starting torque varies within the range shown, depending on the angular position of the output shaft.

MacScott Bond stock a comprehensive range of modular motor, brake, and control valve options, along with foot brackets, Filter Regulator Lubricators, and silencers—all readily available. MacScott Bond maintains an extensive inventory of parts for the RM range. If you need a replacement or additional assistance in choosing the right motor, feel free to reach out to us. We'd be happy to help.

Part Numbers RM610
Peak Power 2000rpm (motor only)
Nominal Speed 1500rpm (motor only)
Nominal Torque 150 Nm (110 lb-ft) (motor only)
Min. Starting Torque 240 Nm (177 lb-ft) (motor only)

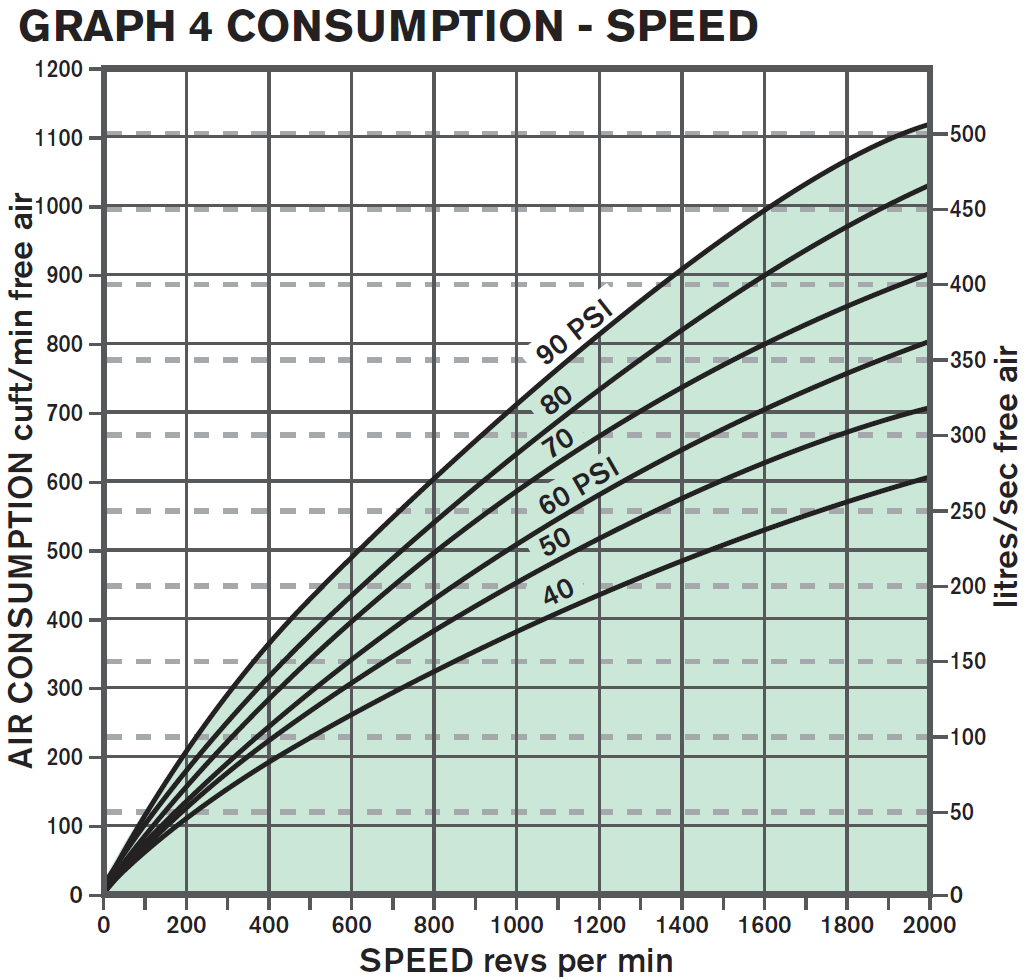

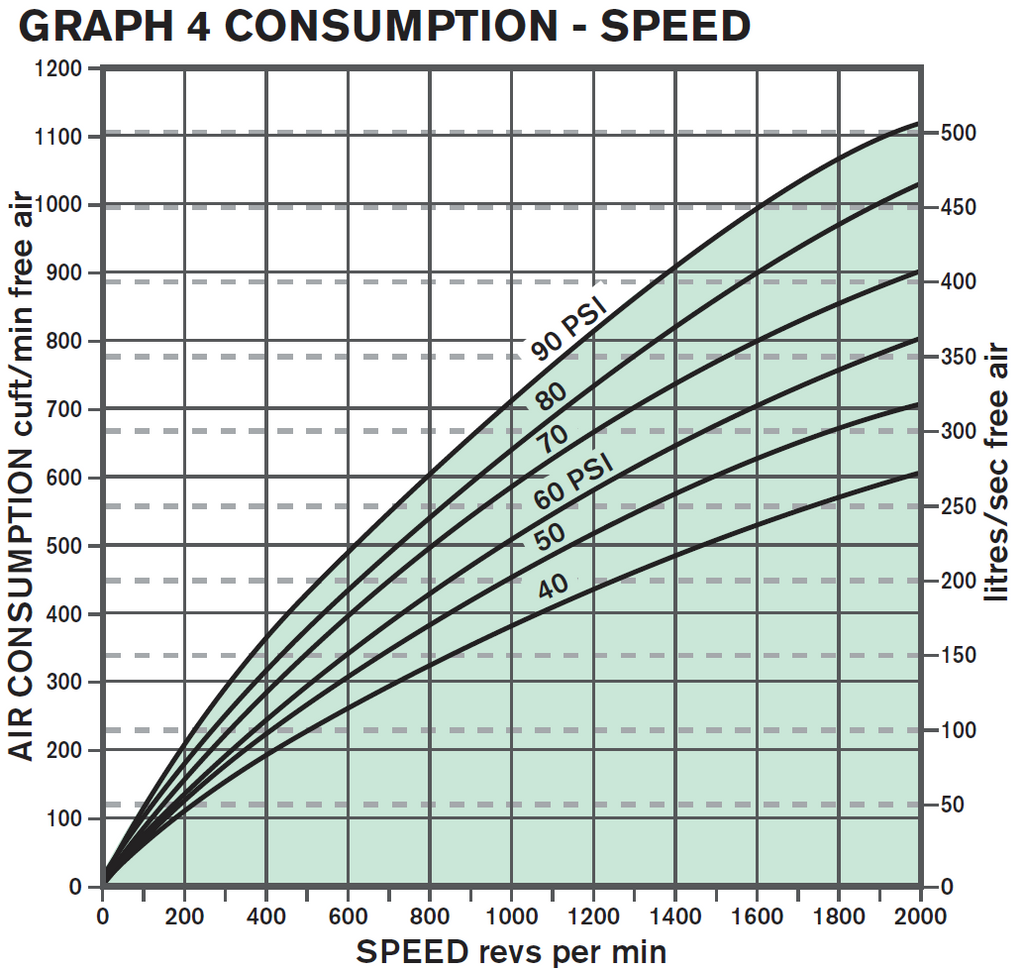

Air Consumption <375 litres/sec free air
Max. Working Pressure 6 bar
Operating Temperatures -20oC to 60oC
-10oC to 60oC - with brake
Airline Filtration <64 μm
Lubrication Oil Horizontal - 1.1 litres
Vertical - 2.1 litres
Good quality hydraulic oil with viscosity of around 100cSt (460SSU) at 40oC
Lubrication Continuous: 8 to 10 drops per minute
Intermittent: 16 to 20 drops per minute
Shaft Keyed Shaft
Max. Overhung Force on motor shaft 6500N (1460lbf)
Air Connection 2" BSP
ATEX ATEX rated II 2 GD c T5 (motor only)
Please discuss ATEX requirements with MacScott Bond.
Manufacturer Globe Airmotors B.V.
