Technical Details for the SC190EUM

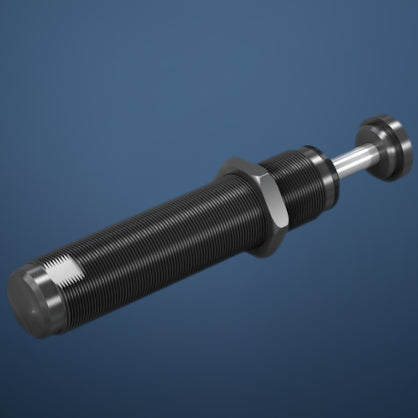

The SC190EUM Miniature Shock Absorbers deliver soft, precise damping with a 16 mm stroke and 25 Nm energy capacity per cycle. Part of the SC ('soft contact') product line, these shock absorbers achieve smooth deceleration and low reaction forces thanks to their unique long-stroke design. Built from a single solid piece, they support both linear and progressive braking, making them ideal for sensitive applications.Maintenance-free and easy to install, these absorbers include an integrated positive stop and, with a side load adapter, can handle impact angles up to 25°. Their overlapping effective weight range spans from under 1 kg to over 2,000 kg, making them versatile choices for handling, automation, and mechanical engineering.
| Energy capacity | 25 Nm/Cycle |
| Stroke | 16 mm |
| Impact velocity range | 0.15 m/s to 3.66 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel |
| Operating Fluid | Oil, temperature stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
