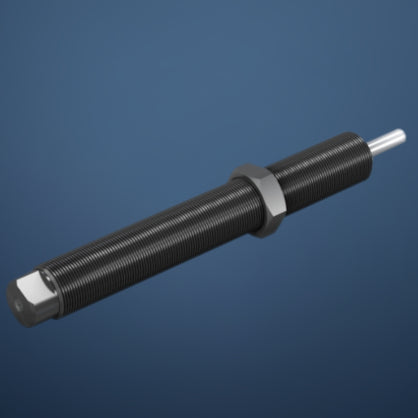

Technical Details for the SC225EUM
The SC225 to SC2190 series of miniature 'soft contact' shock absorbers offers superior energy absorption in a compact design, covering effective weight ranges from 1 kg to 1,550 kg. With thread sizes from M10 to M14, these shock absorbers feature ACE’s piston tube technology and a perfected diaphragm seal, enabling direct installation as end-position damping in pneumatic cylinders at 5 to 7 bar or near pivot points. Maintenance-free and versatile, these absorbers integrate a positive stop and can be mounted in any orientation. An optional side load adapter also supports impact angles up to 25°, making this series ideal for pick-and-place systems, pneumatic rotary modules, and other demanding automation applications.
| Energy capacity | 10 Nm/Cycle |
| Stroke | 8 mm |
| Impact velocity range | 0.1 m/s to 5.7 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel; Rolling diaphragm: SC2190: EPDM; Stretch diaphragm: SC225 and SC275: nitrile |
| Operating Fluid | Oil, temperature stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
