Technical Details for the SC3325EUM

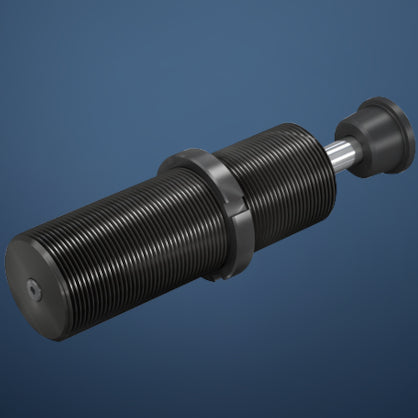

The ACE SC3325EUM Industrial Shock Absorber is engineered for exceptional performance, combining advanced piston tube technology with MAGNUM-range sealing and a membrane accumulator for enhanced durability and energy absorption. With an energy capacity of 155Nm per cycle and a stroke range from 23.2mm, it efficiently decelerates rotary movements with minimal recoil, even at low impact speeds. Its high oil volume ensures handling of maximum effective weights, while its short stroke length enables quick braking. Constructed with nitride-hardened steel and corrosion-resistant coatings, this maintenance-free absorber is suitable for mechanical engineering applications such as pivot units, rotary tables, and robotics. Capable of mounting in any position, the SC3325EUM is reliable even in challenging environments. Additional customisation options, including special oils and low noise buttons, are available to meet specific application needs, just ask and MacScott Bond can assist you.
| Energy capacity | 155 Nm/Cycle |
| Stroke | 23.2 mm |
| Impact velocity range | 0.02 m/s to 0.46 m/s. Other speeds on request. |
| Operating temperature range | -12oC to +66oC |
| Material | Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Accessories: steel with black oxide finish or nitride hardened |
| Operating Fluid | low temperature hydraulic oil |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
