Technical Details for the SC2650EUM

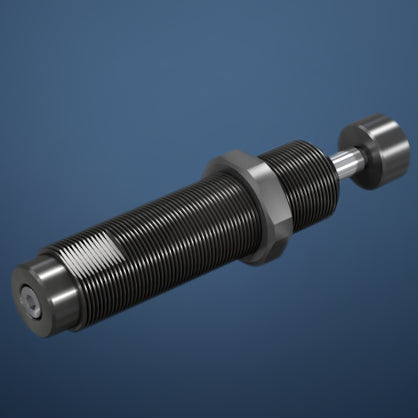

The SC2650EUM miniature shock absorber combines ACE's advanced piston tube and accumulator technology for maximum energy absorption and safety. Designed to handle up to 210 Nm per cycle with a 23 mm stroke, it provides up to three times the energy capacity of similar-sized standard shock absorbers. The membrane accumulator compensates for displaced oil, enhancing process reliability and eliminating traditional absorber materials. With a built-in positive stop and maintenance-free operation, the SC2650EUM is ideal for rotary modules, pivot-proximate mounting, and demanding automation tasks. An optional side load adapter supports impact angles up to 25°, adding versatility for complex applications.
Energy capacity | 210 Nm/Cycle |
Stroke | 23 mm |
Impact velocity range | 0.09 m/s to 3.66 m/s. Other speeds on request. |
Operating temperature range | 0oC to +66oC |
Material | Outer body: steel corrosion-resistant coating; Piston rod: hardened stainless steel; Accessories: hardened steel and corrosion-resistant coating |
Operating Fluid | Oil, temperature stable |
Mounting | In any position |
Positive Stop | Integrated |
Manufacturer | ACE Stoßdämpfer GmbH |
