Technical Details for the SC925EUM

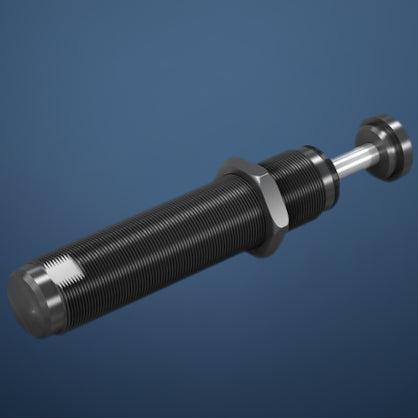

The SC925EUM Miniature Shock Absorbers deliver soft, precise damping with a 40 mm stroke and 110 Nm energy capacity per cycle. Part of the SC ('soft contact') product line, they achieve smooth deceleration and low reaction forces thanks to their unique long-stroke design. Built from a single solid piece, they support both linear and progressive braking, making them ideal for sensitive applications.Maintenance-free and easy to install, these absorbers include an integrated positive stop and, with a side load adapter, can handle impact angles up to 25°. Their overlapping effective weight range spans from under 1 kg to over 2,000 kg, making them versatile choices for handling, automation, and mechanical engineering.
| Energy capacity | 110 Nm/Cycle |
| Stroke | 40 mm |
| Impact velocity range | 0.15 m/s to 3.66 m/s. Other speeds on request. |
| Operating temperature range | 0oC to +66oC |
| Material | Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel |
| Operating Fluid | Oil, temperature stable |
| Mounting | In any position |
| Positive Stop | Integrated |
| Manufacturer | ACE Stoßdämpfer GmbH |
