Technical Details for the UFM 015

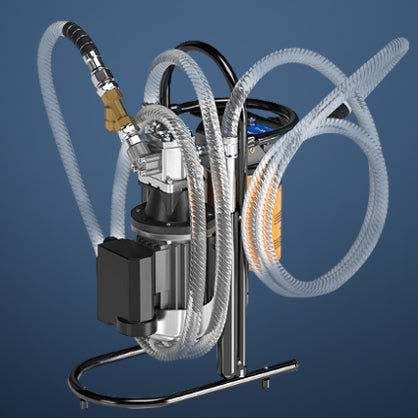

The UFM 015 Mobile Filtration Unit offers a compact answer to hydraulic oil transfer and filtration needs. With a 15 L/min flow rate, this portable unit is tailored for filling/transferring hydraulic oils and filtering/cleaning hydraulic systems. Using a Spin-On standard cartridge, it enhances dirt-holding capacity while minimising pressure drop. Compact, lightweight, and user-friendly, the UFM 015 ensures dependable and effortless maintenance. Powered by a gear pump and 0.18 kW electric motor, it maintains efficiency with a maximum operation pressure of 4.0 bar.
| Pump | Gear Pump |
| Electric Motor | 0.18kW 230 Volt Single Phase |
| Flow Rate | 15L/min |
| Viscosity Range | 10 cSt to 200 cSt |
| Suction Filter | Type Y filtration 500µm |
| Filtration | 3/6/10/16/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set | Rating 3.5 bar |
| Operating Temperatures | Fluid: 5oC to 60oC Ambient: 5oC to 40oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil |
| Suction / Pressure Hose |
Suction: DN18 length 2500mm (Lance: DN/OD20 length 400mm) Pressure: DN18 length 2500mm (Lance: DN/OD18 length 400mm) |
| Dimensions | Weight: 14.8kg Dimensions: 570mm (H) x 620mm (D) x 500mm (W) |
| Manufacturer | MP Filtri |
