Technical Details for the UFM 041

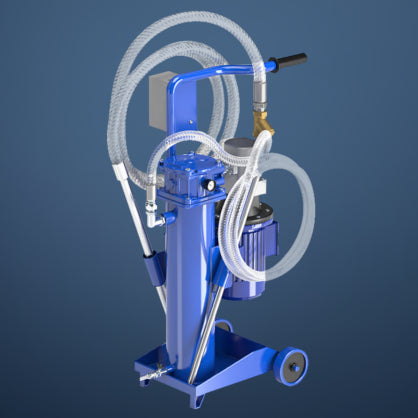

The UFM 041 Mobile Filtration Unit offers a solution for hydraulic fluid maintenance. Boasting a 34 L/min flow rate, it's designed for filling and replenishing filtered hydraulic fluids and lubrication tanks. When connected off-line to the tank (recommended maximum volume of 350/500 L.), it offers invaluable support during start-up, facilitating a quick flush or serving as an additional filtration system for heavily contaminated set-ups. Equipped with a gear pump and a 0.75 kW electric motor (available in single or three-phase options), it offers dependable and efficient operation. Its compact stature, lightweight design, and hassle-free maintenance make the UFM 041 an ideal choice for achieving your filtration requirements.
| Pump | Gear Pump |
| Electric Motor |
0.75kW 230 Volt Single Phase 0.75kW 400/230 Volt Three Phase |
| Flow Rate | 34L/min |
| Viscosity Range | 10 cSt to 200 cSt |
| Suction Filter | Type Y filtration 350µm |
| Filtration Rating | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set | Rating 3 bar |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: -20oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil & Synthetic Oil |
| Suction / Pressure Hose |
Suction: DN25 length 3000 mm (Lance: DN/OD25 length 700mm) Pressure: DN25 length 3000 mm (Lance: DN/OD20 length 700mm) |
| Dimensions | Weight: 45kg Dimensions: 1100mm (H) x 700mm (D) x 410mm (W) |
| Manufacturer | MP Filtri |
