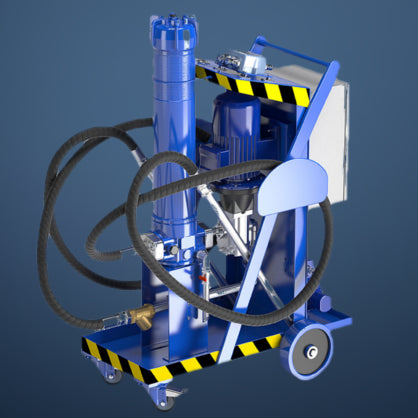

Technical Details for the UFM 051
The UFM 051 Mobile Filtration Unit is a high-capacity solution for hydraulic oil maintenance, featuring a substantial 50 L/min flow rate. Tailored for filling and refilling filtered hydraulic fluids and lubrication tanks, it is connected off-line to the tank (recommended maximum volume of 500/750 L.). This unit can act as support during start-up for fast flushing or as an additional filtration system for high-contamination environments. The UFM 051’s three-phase electric motor set-up is particularly recommended for continued use. Equipped with a gear pump and a 1.5 kW electric motor (single or three-phase options), it ensures reliable, continuous operation with a maximum pressure of 10 bar. The unit's compact design, easy maintenance, and inclusion of an In-line Contamination Monitor make it an excellent choice for filtration in various applications.
| Pump | Gear Pump |
| Electric Motor |
1.5kW 230 Volt Single Phase 1.5kW 400/230 Volt Three Phase with ICM 2.0 |
| Flow Rate | 50L/min |
| Viscosity Range | 10 cSt to 300 cSt |
| Suction Filter | Type Y filtration 800µm |
| Filtration Rating | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set |
Rating 3.5 bar The bypass can be blocked through the spigot |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: -20oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil & Synthetic Oil |
| Suction / Pressure Hose |
Suction: DN32 length 3000 mm (Lance: DN/OD42 length 700mm) Pressure: DN25 length 3000 mm (Lance: DN/OD30 length 700mm) |
| Dimensions | Weight: 70kg Dimensions: 1270mm (H) x 1120mm (D) x 570mm (W) |
| Manufacturer | MP Filtri |
