Technical Details for the UFM 091

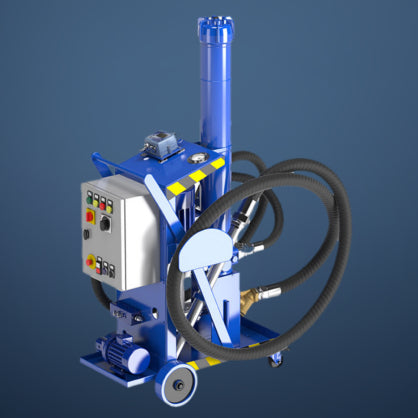

The UFM 091 Mobile Filtration Unit offers high-capacity hydraulic fluid care, boasting an impressive 90 L/min flow rate. Designed for filling and refilling filtered hydraulic fluids and lubrication tanks, it connects off-line to the tank with a recommended maximum volume of 1500/1800L. The UFM 091 serves as support during start-up for fast flushing or as an additional filtration system for environments with a high incidence of contamination. Equipped with a screw pump and a 2.2 kW three-phase electric motor, it ensures continuous operation with a maximum pressure of 10 bar. The unit is available in multiple configurations and includes an In-line Particle Counter ICM for real-time monitoring. With its compact size, easy maintenance, and filtration capabilities, the UFM 091 is a outstanding choice for reliable and efficient hydraulic oil cleaning.
| Pump | Screw Pump |
| Electric Motor | 2.2kW 400/230 Volt Three Phase 4-pole |
| Flow Rate | 90L/min |
| Viscosity Range | 10 cSt to 800 cSt |
| Suction Filter | Type Y filtration 800µm |
| Filtration Rating | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set |
Rating 3.5 bar The bypass can be blocked through the spigot |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: -20oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil & Synthetic Oil - Water Glycol |
| Suction / Pressure Hose |
Suction: DN50 length 3000 mm (Lance: DN/OD50 length 700mm) Pressure: DN38 length 3000 mm (Lance: DN/OD42 length 700mm) |
| Dimensions | Weight: 105kg Dimensions: 1635mm (H) x 1270mm (D) x 570mm (W) |
| Manufacturer | MP Filtri |
