Technical Details for the UFM 181

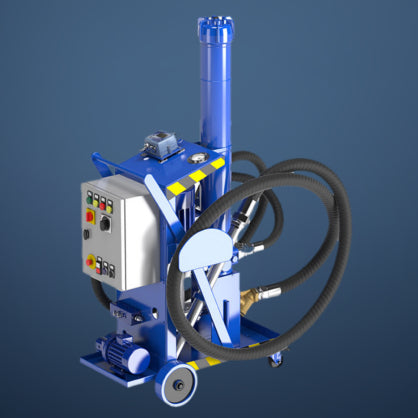

The UFM 181 Mobile Filtration Unit stands out for its high-flow filtration, offering an impressive 180 L/min flow rate. Designed for filling and refilling filtered hydraulic fluids and lubrication tanks, it connects off-line to the tank with a recommended maximum volume of 1800/2700 L. The UFM 181 serves as reliable support to the filtration plant on start-up for fast flushing or as an additional filtration system for environments with a high contamination. With a screw pump and a robust 4 kW three-phase electric motor, it ensures continuous operation with a maximum pressure of 10 bar. The unit is available with different configurations, providing options for automatic motor cut-out and an In-line Particle Counter ICM for real-time monitoring. Compact, easy to use, and equipped with MP Filtri’s high performance filters, the UFM 181 is an ideal choice for efficient and reliable hydraulic fluid maintenance.
| Pump | Screw Pump |
| Electric Motor | 4kW 400/230 Volt Three Phase 2-pole |
| Flow Rate | 180L/min |
| Viscosity Range | 10 cSt to 800 cSt |
| Suction Filter | Type Y filtration 800µm |
| Filtration Rating | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set |
Rating 3.5 bar The bypass can be blocked through the spigot |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: -20oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil & Synthetic Oil - Water Glycol |
| Suction / Pressure Hose |
Suction: DN50 length 3000 mm (Lance: DN/OD50 length 700mm) Pressure: DN38 length 3000 mm (Lance: DN/OD42 length 700mm) |
| Dimensions | Weight: 109kg Dimensions: 1635mm (H) x 1270mm (D) x 570mm (W) |
| Manufacturer | MP Filtri |
