Technical Details for the UFM 919

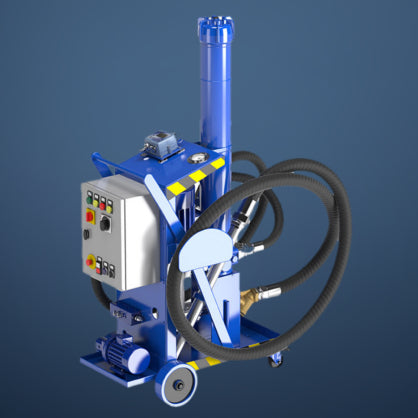

The UFM 919 Mobile Filtration Unit offers versatility with a programmable flow rate of 90 or 180 L/min, making it suitable for various applications in filling and refilling filtered hydraulic fluids and lubrication tanks. Connected off-line to the tank, it serves as reliable support to the filtration plant during start-up for fast flushing or as an additional filtration system in environments with a high incidence of contamination. With features like compact size, high flow capacity, and an In-line Contamination Monitor, the UFM 919 is easy to use, maintain, and ensures filtration to a high standard.
| Pump | Screw Pump |
| Electric Motor | 3.7 / 5kW 400/230 Volt Three Phase 2/4-pole |
| Flow Rate | 90L/min or 180L/min |
| Viscosity Range | 10 cSt to 800 cSt |
| Suction Filter | Type Y filtration 800µm |
| Filtration Rating | 1/3/6/10/25 µm ß>1000 flow through the element Out/In |
| Bypass valve Δp set |
Rating 3.5 bar The bypass can be blocked through the spigot |
| Operating Temperatures | Fluid: -10oC to 80oC Ambient: -20oC to 45oC |
| Protection Class | IP 55 |
| Seal | NBR |
| Fluid Compatibility | Mineral Oil & Synthetic Oil - Water Glycol |
| Suction / Pressure Hose |
Suction: DN50 length 3000 mm (Lance: DN/OD50 length 700mm) Pressure: DN38 length 3000 mm (Lance: DN/OD42 length 700mm) |
| Dimensions | Weight: 120kg Dimensions: 1635mm (H) x 1270mm (D) x 570mm (W) |
| Manufacturer | MP Filtri |
