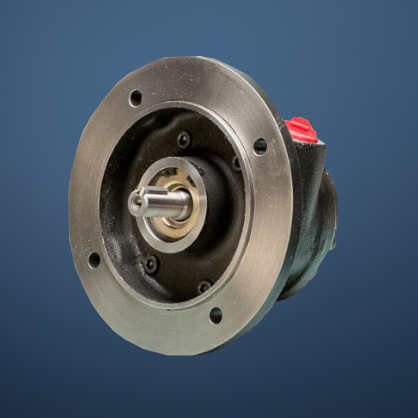

Technical Details for the V12 Vane Motor
| Part Numbers | V12 |
| Peak Power | 1800rpm |
| Nominal Torque | 74.58 Nm (55 lb-ft) |
| Min. Starting Torque | 73.22 Nm (54 lb-ft) |
| Air Consumption | <350 litres/sec free air |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 60oC |
| Airline Filtration | <64 μm |
| Lubrication Oil | |
| Lubrication | Continuous: 12 to 14 drops per minute Intermittent: 18 to 20 drops per minute |
| Shaft | Keyed Shaft |
| Air Connection | 2" NPT |
| ATEX | EX II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db |
| Manufacturer | Globe Airmotors B.V. |
