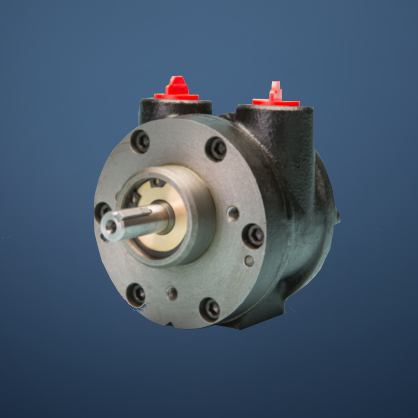

Technical Details for the V2 Vane Motor
| Part Numbers | V2 |
| Peak Power | 4000rpm |
| Nominal Torque | 2.09 Nm (18.5 inch lbs.) |
| Min. Starting Torque | 2.26 Nm (20 inch lbs.) |
| Air Consumption | <35 litres/sec free air |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 60oC |
| Airline Filtration | <64 μm |
| Lubrication Oil | |
| Lubrication | Continuous: 3 to 4 drops per minute Intermittent: 6 to 8 drops per minute |
| Shaft | Keyed Shaft |
| Air Connection | 3/8" NPT |
| ATEX | EX II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db |
| Manufacturer | Globe Airmotors B.V. |
