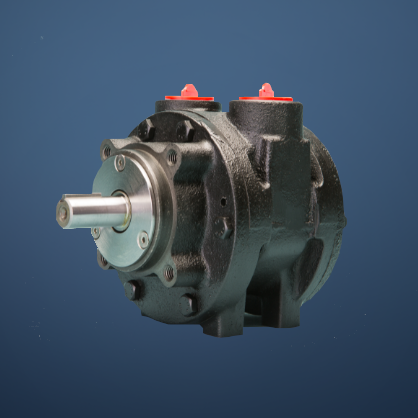

Technical Details for the V8 Vane Motor
| Part Numbers | V8 |

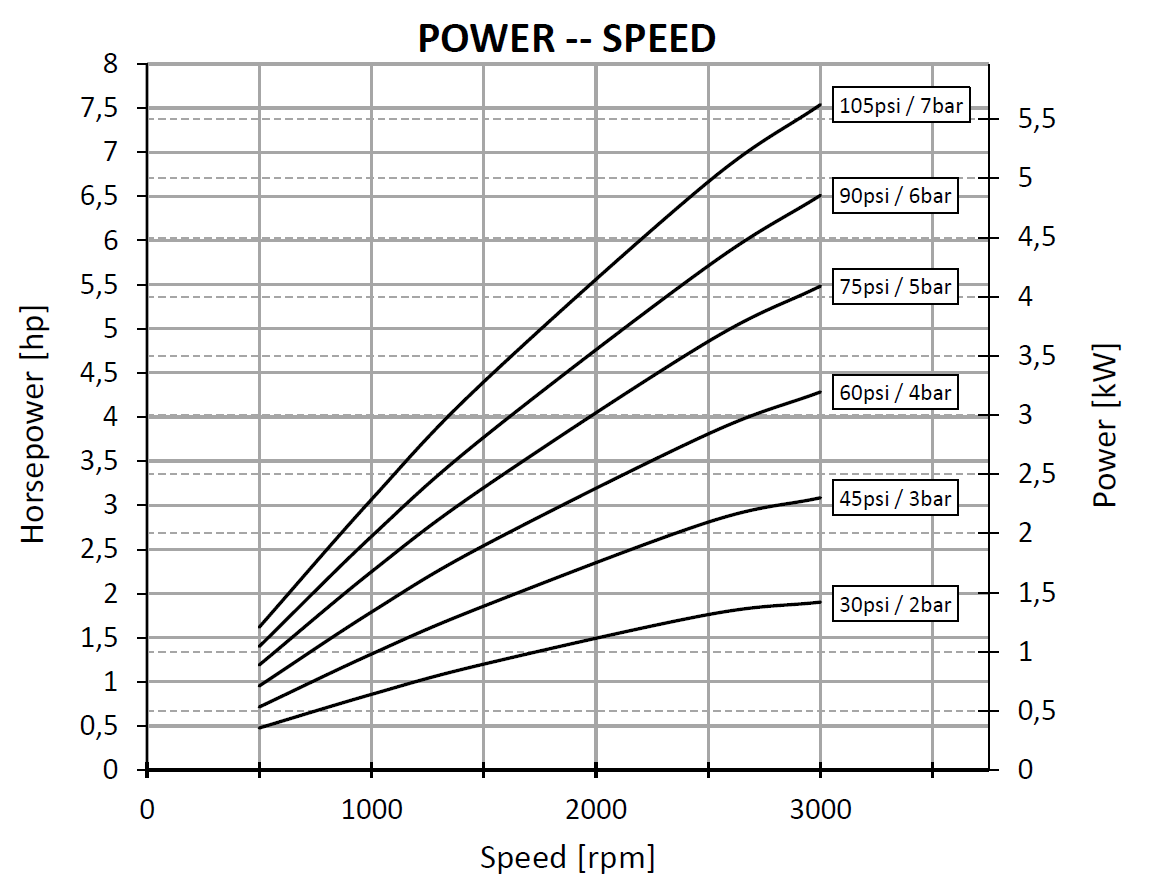

| Peak Power | 3000rpm |

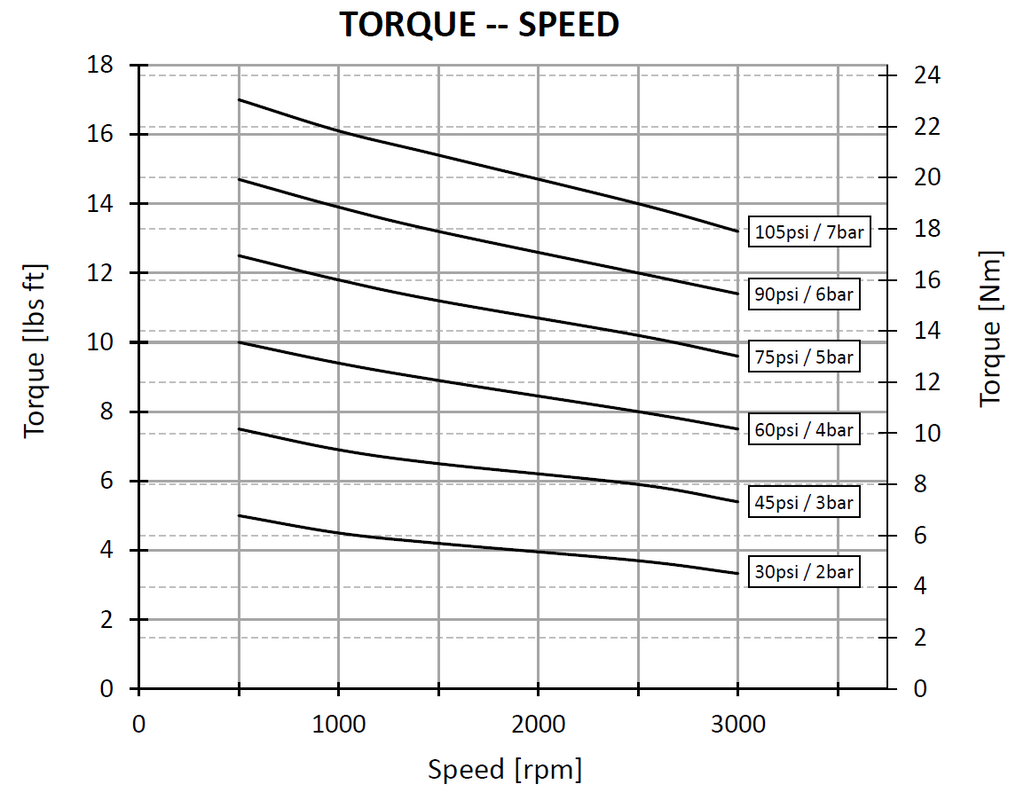

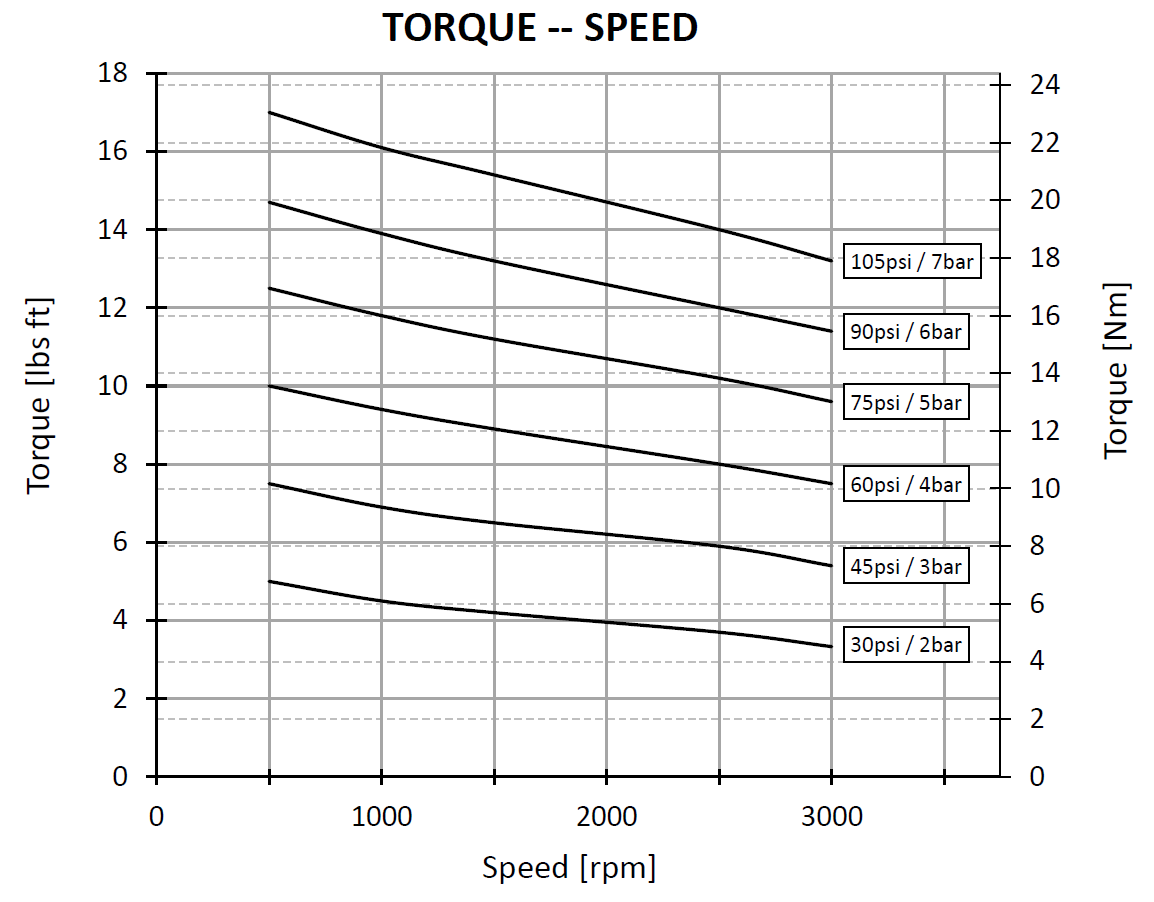

| Nominal Torque | 18.44 Nm (13.6 lb-ft) |

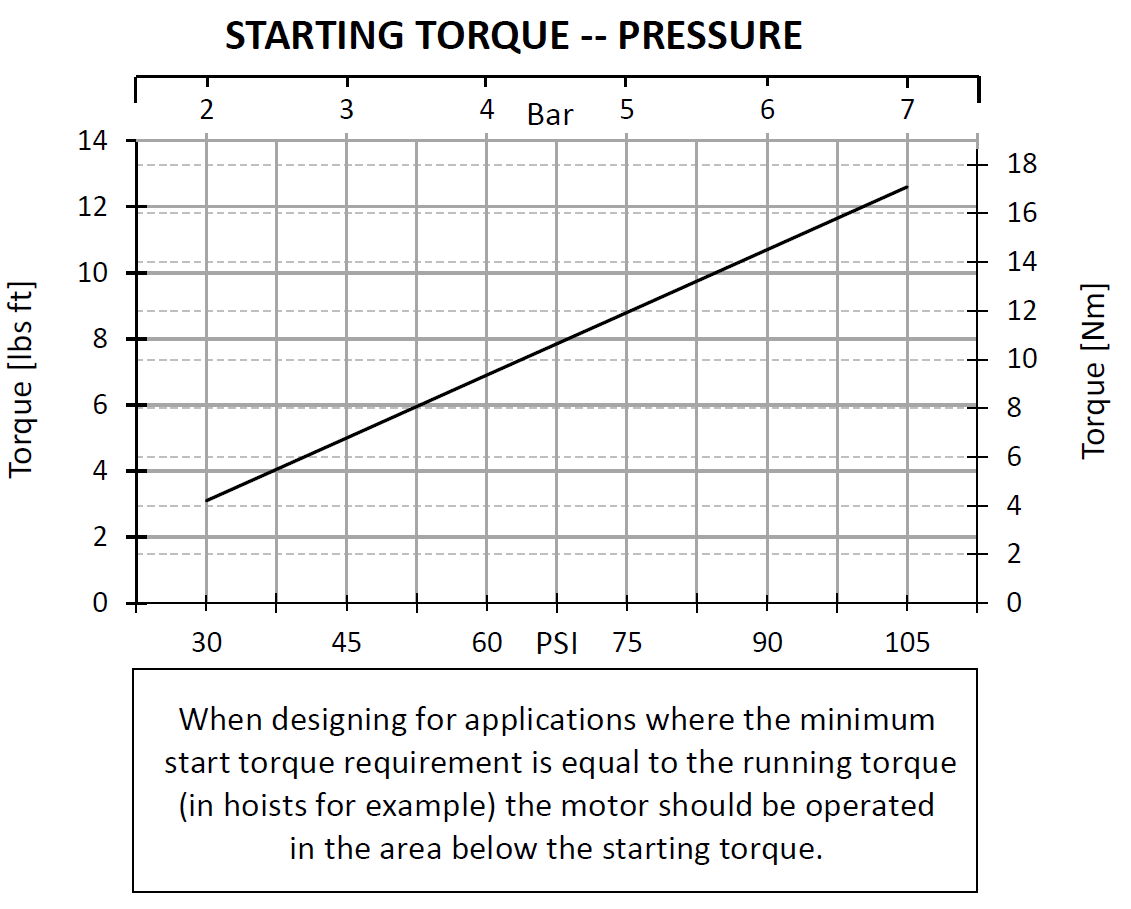

| Min. Starting Torque | 17.09 Nm (12.6 lb-ft) |

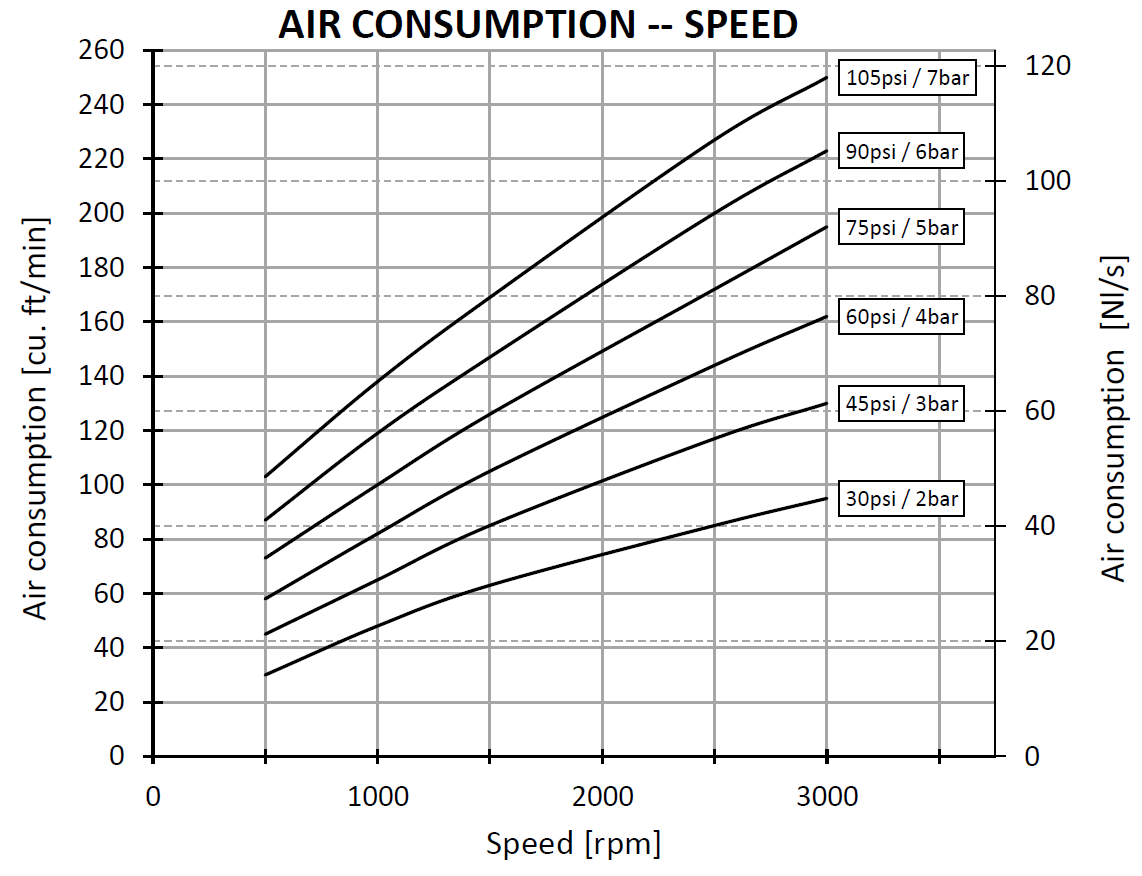

| Air Consumption | <120 N litres/sec |
| Max. Working Pressure | 7 bar |
| Operating Temperatures | -20oC to 60oC |
| Airline Filtration | <64 μm |
| Lubrication Oil | |
| Lubrication | Continuous: 6 to 7 drops per minute Intermittent: 12 to 15 drops per minute |
| Shaft | Keyed Shaft |
| Air Connection | 1" NPT |
| ATEX | EX II 2G Ex h IIC T4 Gb II 2D Ex h IIIC T135°C Db |
| Manufacturer | Globe Airmotors B.V. |
