Technical Details for the VS-BA1

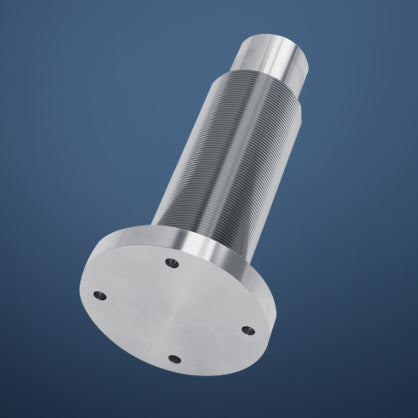

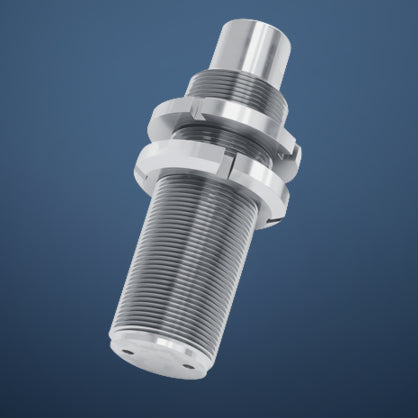

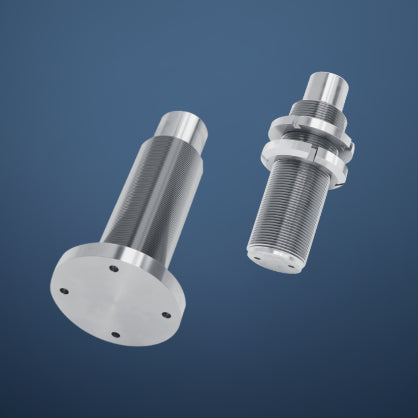

The VS-BA1 viscoelastic shock absorbers from ACE Controls offer energy capacities from 1,000 Nm to 14,000 Nm per cycle and strokes from 12 mm to 80 mm. Utilising hydrostatic compression principles, they combine the functions of shock absorbers and a spring for high damping efficiency, minimal sensitivity to temperature changes, and enhanced safety through integrated static preload. Ideal for heavy industry, they are widely used in material handling, rolling mills, defence, waterways, and paper production
| Energy capacity | 1,000 Nm/Cycle to 14,000 Nm/Cycle |
| Stroke | 12 mm to 80 mm |
| Dynamic force range | 6,000 N to 230.000 N |
| Static force range | 6,500 N to 173,000 N |
| Impact velocity range | 0.5 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -20oC to +50oC |
| Material | Outer body, Piston rod: zinc plated steel |
| Operating Fluid | Visco-elastic fluid |
| Mounting | In any position |
| Note: | The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect. |
| Manufacturer | ACE Stoßdämpfer GmbH |
