Technical Details for the VS-BALR

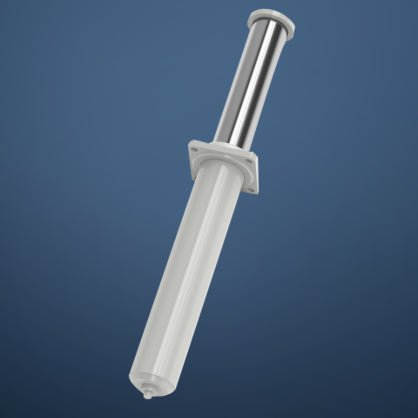

The VS-BALR viscoelastic shock absorbers from ACE Controls offer energy capacities from 100,000 Nm to 400,000 Nm per cycle and strokes from 400 mm to 850 mm. Utilising hydrostatic compression principles, they combine the functions of shock absorbers and a spring for high damping efficiency, minimal sensitivity to temperature changes, and enhanced safety through integrated static preload. Ideal for heavy industry, they are widely used in material handling, rolling mills, defence, waterways, and paper production
| Energy capacity | 100,000 Nm/Cycle to 400,000 Nm/Cycle |
| Stroke | 400 mm to 850 mm |
| Dynamic force range | 190,000 N to 600,000 N |
| Static force range | 230,000 N to 425,000 N |
| Impact velocity range | 0.5 m/s to 5 m/s. Other speeds on request. |
| Operating temperature range | -20oC to +50oC |
| Material | Outer body, Rod end button: steel painted grey; Piston rod: zinc plated steel |
| Operating Fluid | Visco elastic fluid |
| Mounting | In any position |
| Positive Stop | Integrated |
| Note: | The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect. |
| Manufacturer | ACE Stoßdämpfer GmbH |
